Главная Каталог продукции Toolunited 11 303-06 - Ball-nosed end mill INZIR025.125.025Z2D4 IN3005

INZIR025.125.025Z2D4 IN3005

Артикул: 3055719

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

2.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

PKD

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

2.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

ZYL00400105

DN Neck diameter

2.4 mm

FamilyProducts

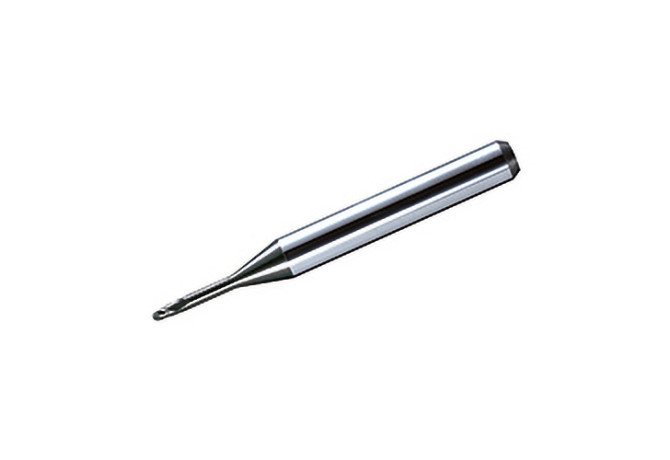

Ball nose end mill for machining zirconium oxide, z=2

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IN3005

HAND Cutting direction

R - Right

ID Technical product number

3055719

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

Name Identifying order number

INZIR025.125.025Z2D4 IN3005

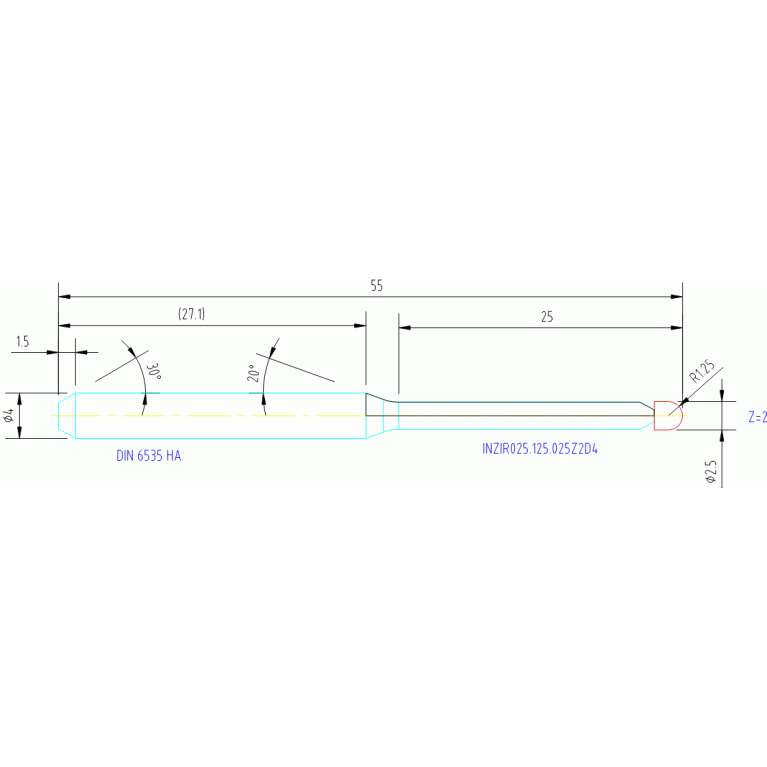

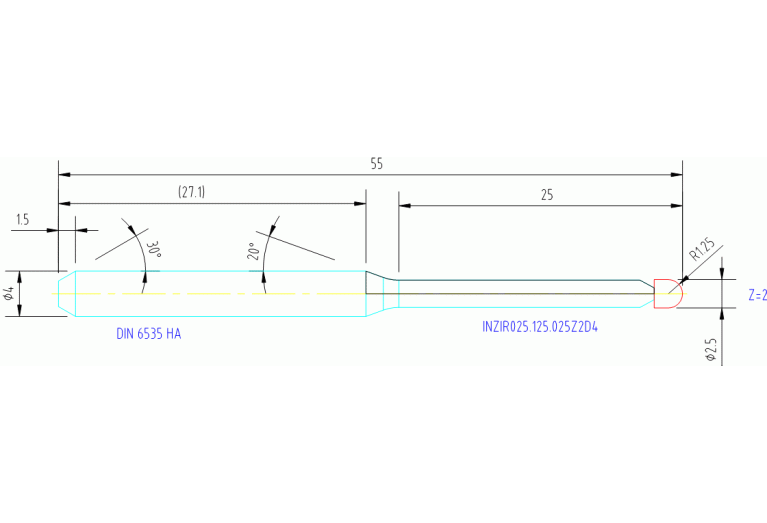

OAL Overall length

55 mm

PRFRAD Profile radius 1

1.25 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.065 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
