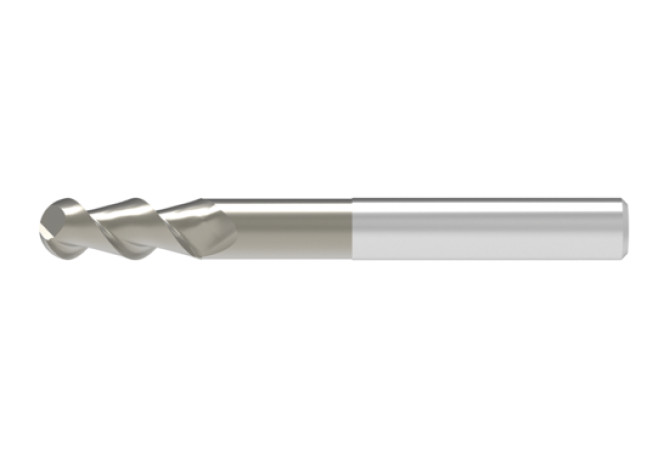

Главная Каталог продукции Toolunited 11 303-06 - Ball-nosed end mill 54642182

54642182

Артикул: 54642182

В наличии

В корзину

Описание

Характеристики

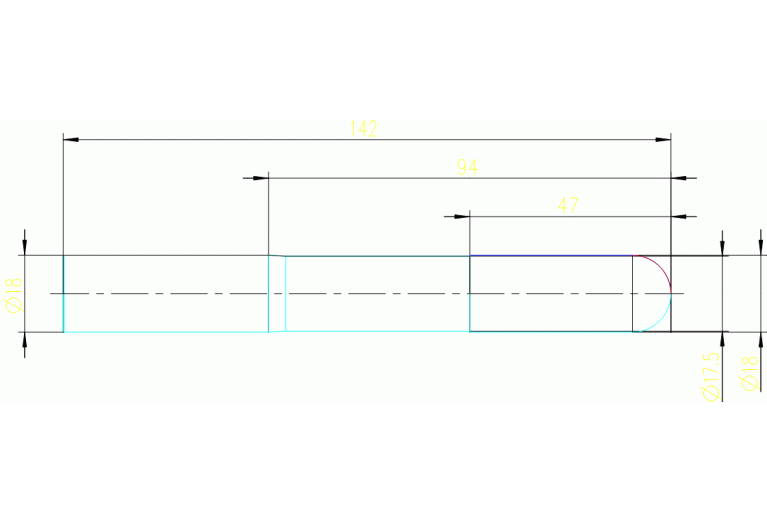

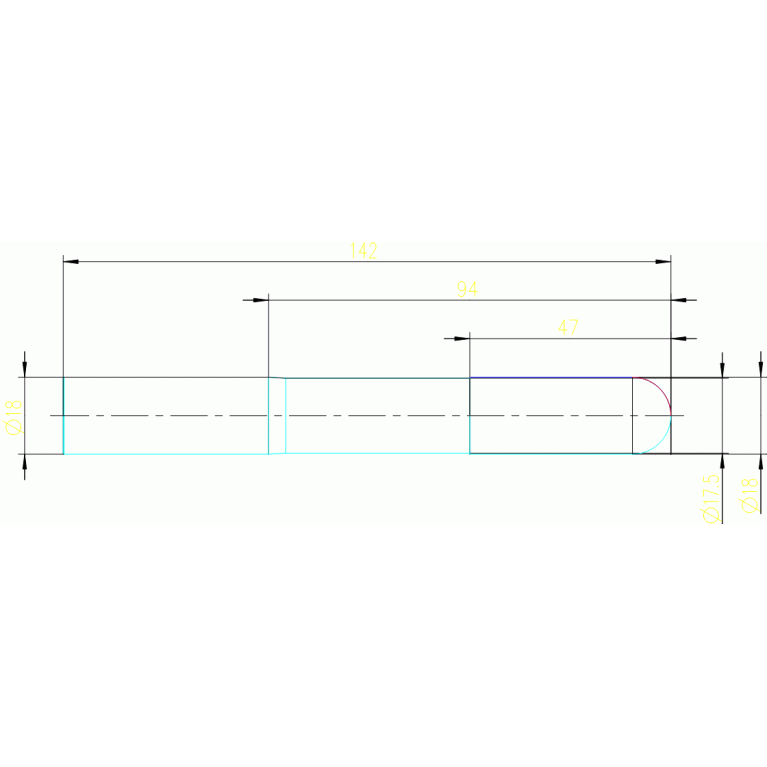

APMX Depth of cut maximum

47 mm

COATN Coating / Покрытие

Ti1005

COMPC Company code

CE - Ceratizit

DC Cutting diameter

18 mm

Delivery state valid from

10/1/2021

DIN

ZYL01800105

DN Neck diameter

17.5 mm

FamilyProducts

HPC VHM RADIUSFRÄSER

FHA Flute helix angle

55 Degree

FHH Flute helix hand

L - Hand of helix left

GAMP Rake angle axial

7 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LH Head length

90 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01800105

LPR Protruding length

94 mm

LS Shank length

48 mm

Name Identifying order number

54642182

OAL Overall length

142 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
