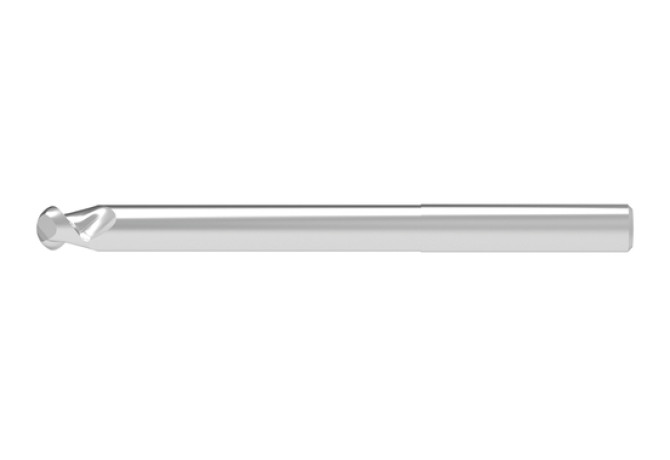

Главная Каталог продукции Toolunited 11 303-06 - Ball-nosed end mill 54640145

54640145

Артикул: 54640145

В наличии

В корзину

Описание

Характеристики

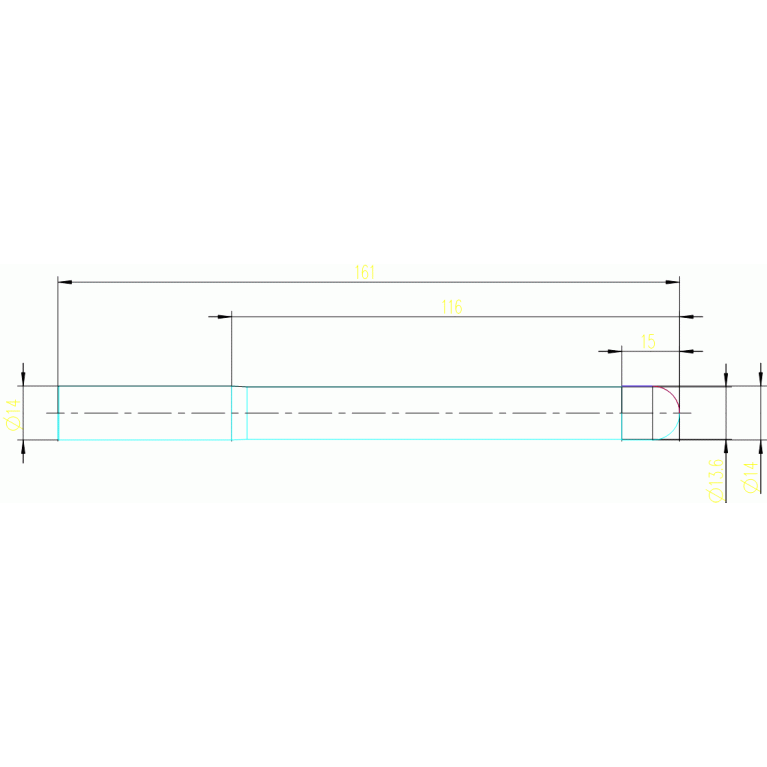

APMX Depth of cut maximum

15 mm

COATN Coating / Покрытие

ohne

COMPC Company code

CE - Ceratizit

DC Cutting diameter

14 mm

Delivery state valid from

10/1/2021

DIN

ZYL01400105

DN Neck diameter

13.6 mm

FamilyProducts

HPC VHM RADIUSFRÄSER

FHA Flute helix angle

55 Degree

FHH Flute helix hand

L - Hand of helix left

GAMP Rake angle axial

7 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LH Head length

112 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01400105

LPR Protruding length

116 mm

LS Shank length

45 mm

Name Identifying order number

54640145

OAL Overall length

161 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
