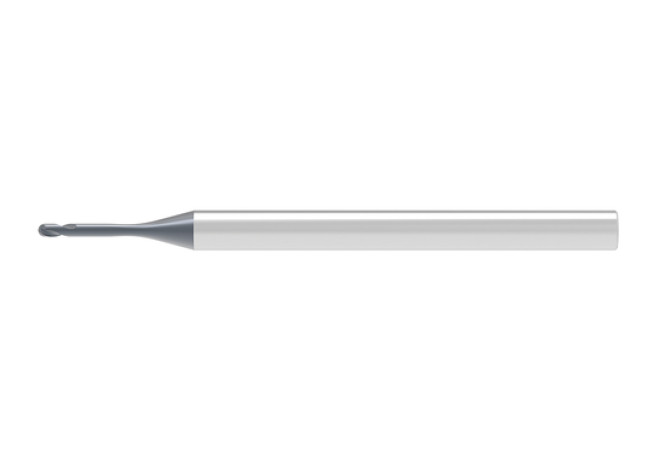

Главная Каталог продукции Toolunited 11 303-06 - Ball-nosed end mill 5280406100

5280406100

Артикул: 5280406100

В наличии

В корзину

Описание

Характеристики

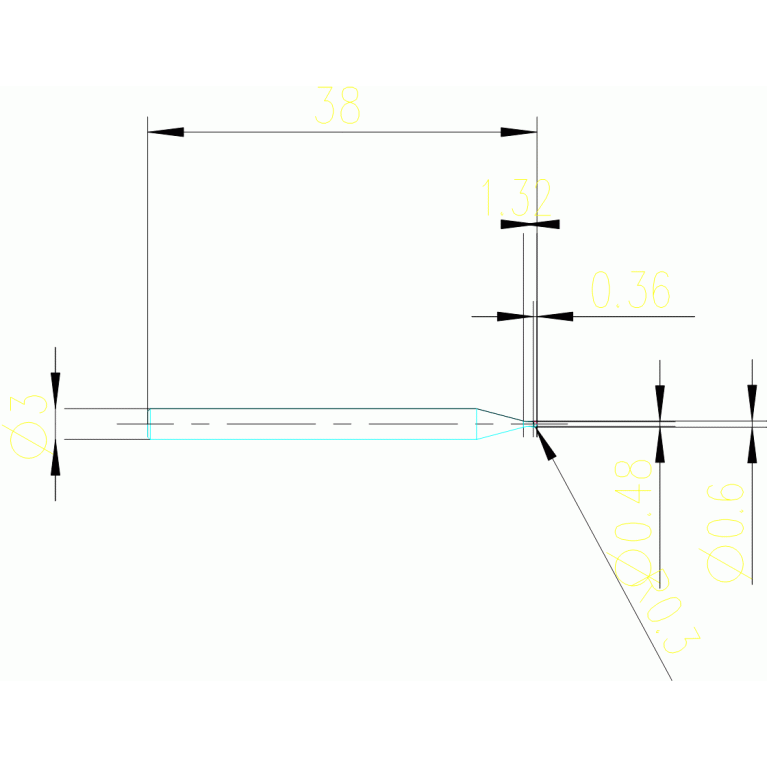

APMX Depth of cut maximum

0.36 mm

COATN Coating / Покрытие

DPA72S

COMPC Company code

CE - Ceratizit

DC Cutting diameter

0.6 mm

DIN

ZYL00300105

DN Neck diameter

0.48 mm

FamilyProducts

VHM MICRO-RADIUSFRÄSER

FHA Flute helix angle

30 Degree

FHH Flute helix hand

L - Hand of helix left

GAMP Rake angle axial

6 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LH Head length

1.32 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

LPR Protruding length

6 mm

LS Shank length

32 mm

Name Identifying order number

5280406100

OAL Overall length

38 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
