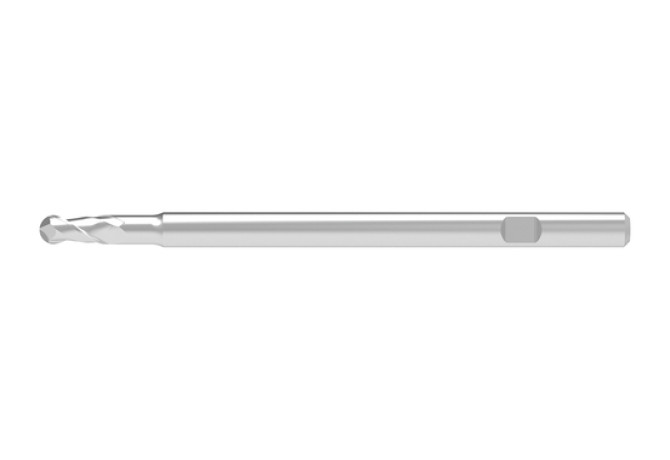

52251120

Артикул: 52251120

В наличии

В корзину

Описание

Характеристики

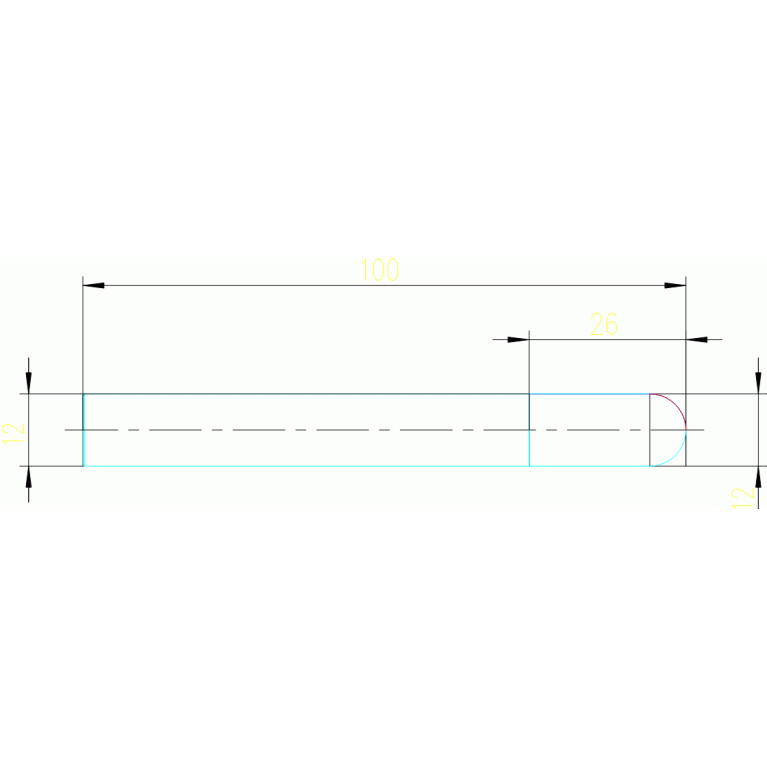

APMX Depth of cut maximum

26 mm

COATN Coating / Покрытие

ohne

COMPC Company code

CE - Ceratizit

DC Cutting diameter

12 mm

DIN

ZYL01201005

FamilyProducts

VHM RADIUSFRÄSER

FHA Flute helix angle

30 Degree

FHH Flute helix hand

L - Hand of helix left

GAMP Rake angle axial

12 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201005

LPR Protruding length

55 mm

LS Shank length

45 mm

Name Identifying order number

52251120

OAL Overall length

100 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
