Главная Каталог продукции Toolunited 11 303-06 - Ball-nosed end mill 45B12022T2RB110 IN2006

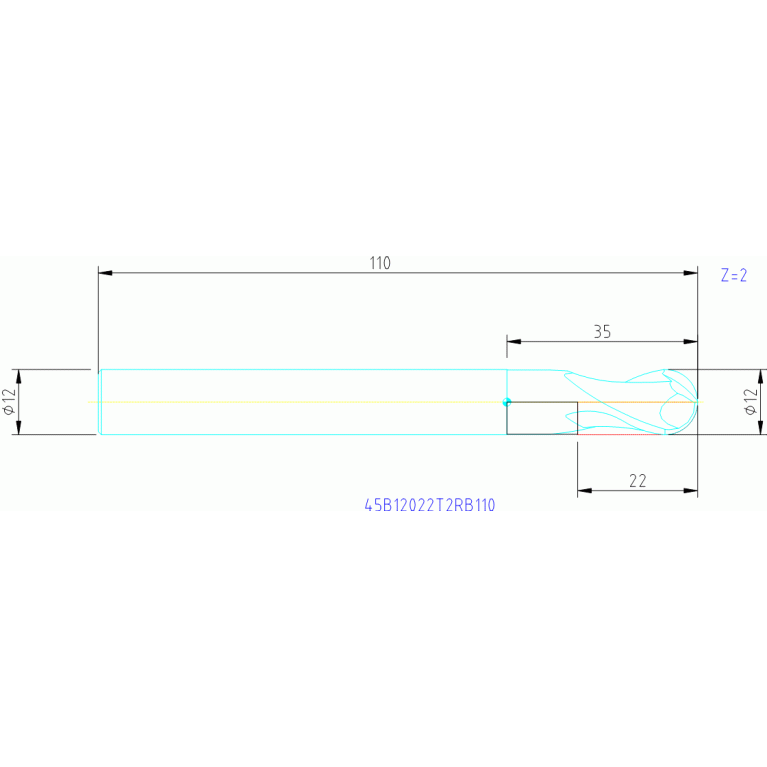

45B12022T2RB110 IN2006

Артикул: 3019245

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

ZYL01200105

DN Neck diameter

11.8 mm

FamilyProducts

2 Flute Ball Nose for Hard Milling

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-M20

GRDMFG Grade manufacturers designation

IN2006

GRDPRIO Standard designation of the grade main application

HC-P20

HAND Cutting direction

R - Right

ID Technical product number

3019245

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

35 mm

Name Identifying order number

45B12022T2RB110 IN2006

OAL Overall length

110 mm

PRFRAD Profile radius 1

6 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.165 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
