Главная Каталог продукции Toolunited 11 303-06 - Ball-nosed end mill 3056118

3056118

Артикул: 3056118

В наличии

В корзину

Описание

Характеристики

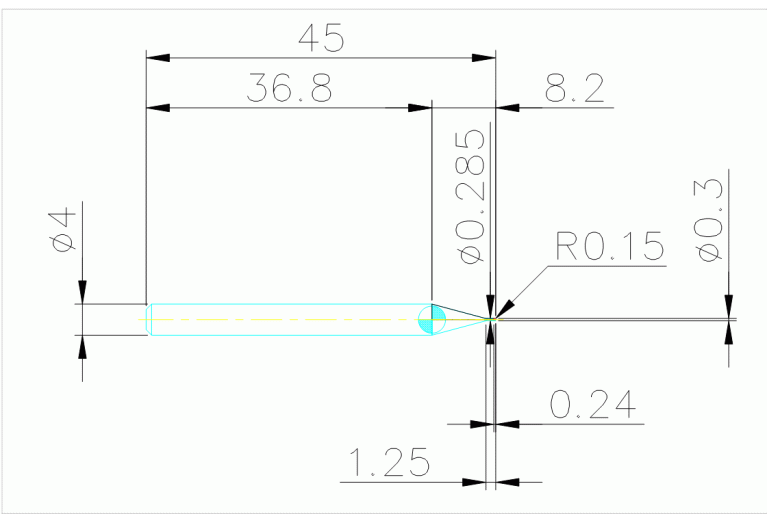

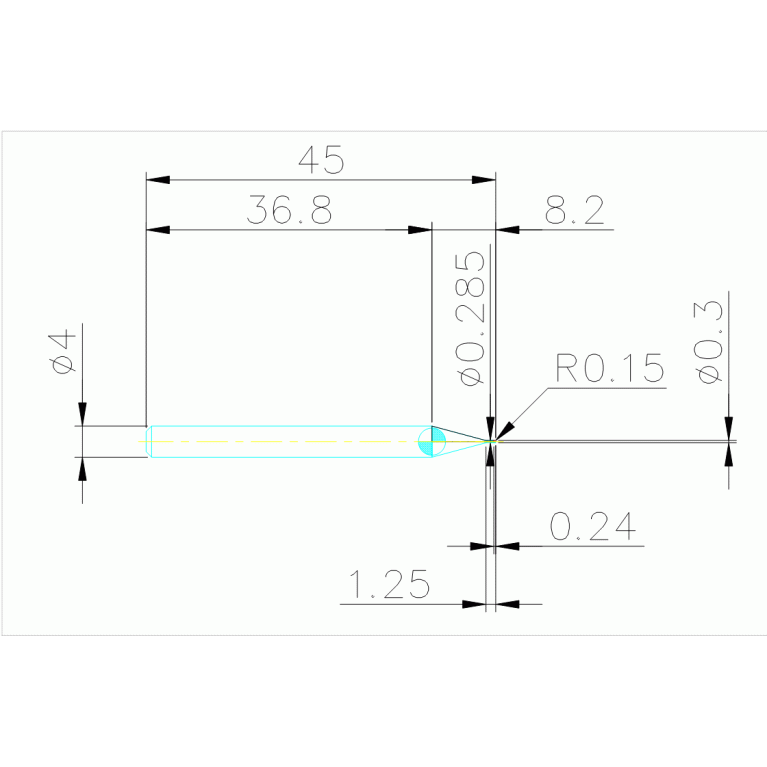

APMX Depth of cut maximum

0.24 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

Multi-SiC layer

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

0.3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2024

DIN

ZYL00400105

DN Neck diameter

0.285 mm

FamilyProducts

OSG AE-LNBD-H R0.15X1.25X4

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 / J61

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

1.128 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$04

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

8.2 mm

LS Shank length

36.8 mm

LU Usable length

1.25 mm

Materials

P,M,K,S,H

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

3056118

OAL Overall length

45 mm

PRFRAD Profile radius 1

0.15 mm

SN B101 Length of the non-cutting cylindrical neck section

0.888 mm

SN B102 Length to the transition radius beginning

1.128 mm

SN E101 1. neck angle

0 Degree

SN E102 Starting angle Neck radius

0 Degree

SN E103 2. neck angle

15 Degree

SN G102 Transition radius

1 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling

WT Weight of item

0.01 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
