5001516100
5001516100
Артикул:
5001516100
В наличии
Характеристики

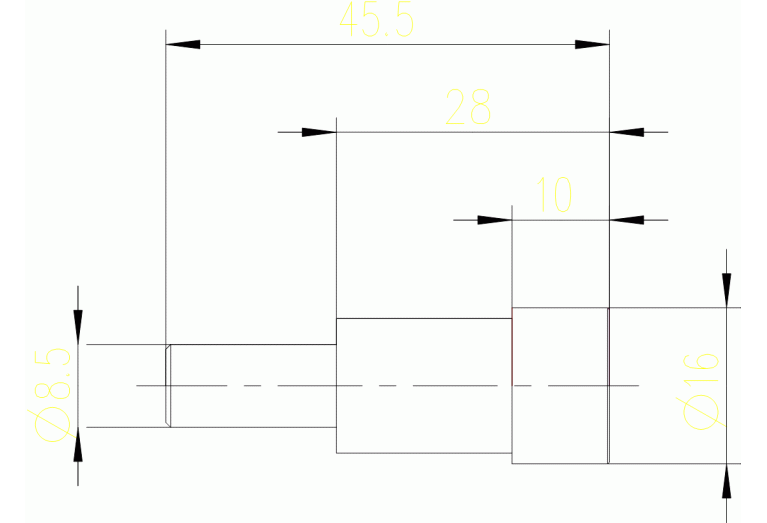

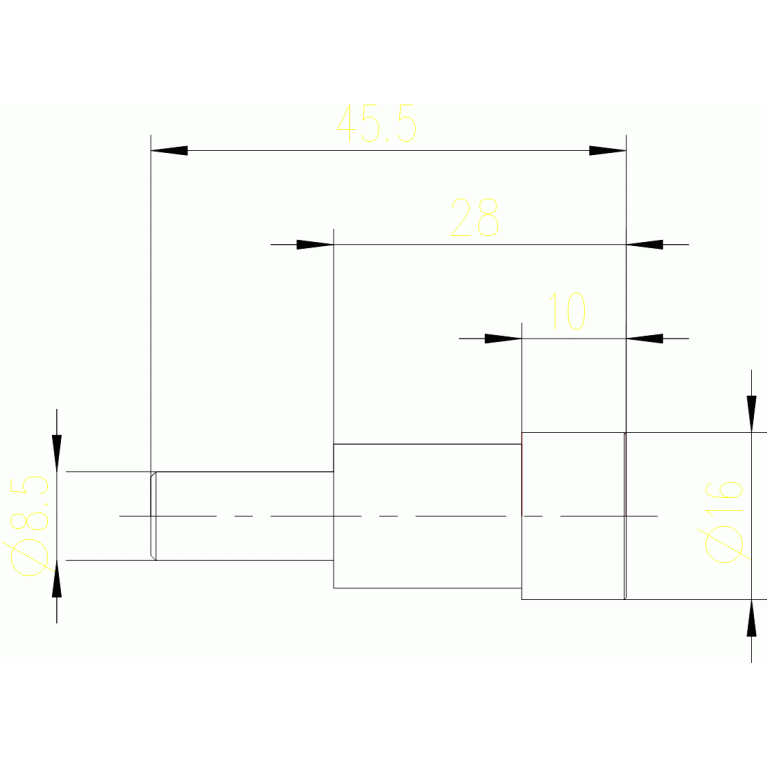

APMX Depth of cut maximum
10 mm
CHW Corner chamfer width
0.2 mm
COMPC Company code
CE - Ceratizit
DC Cutting diameter
16 mm
Delivery state valid from
10/1/2021
DN Neck diameter
13.8 mm
F71 Number of corner designs
1
FamilyProducts
VHM PKD-SCHAFTFRÄSER
FHA Flute helix angle
20 Degree
FHH Flute helix hand
L - Hand of helix left
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
Interface codes
/
ISYC Subclass
303-01 - Non-centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAM Screw mounting MAPAL
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 DCONMS Diameter
8.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LPR Protruding length
28 mm
Name Identifying order number
5001516100
OAL Overall length
45.5 mm
THSZMS Connection thread nominal size machine side
M8
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
5
