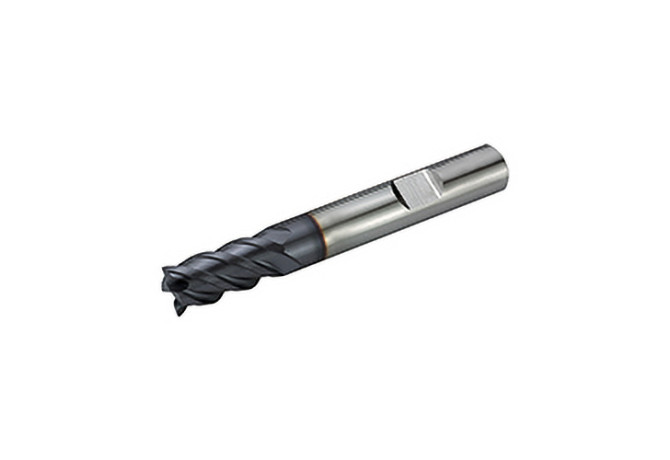

Главная Каталог продукции Toolunited 11 303-01 - Non-centre cutting end mill 47J08020W0RD630 IN2005

47J08020W0RD630 IN2005

Артикул: 3040128

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

20 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

ZYL00801005

F71 Number of corner designs

FamilyProducts

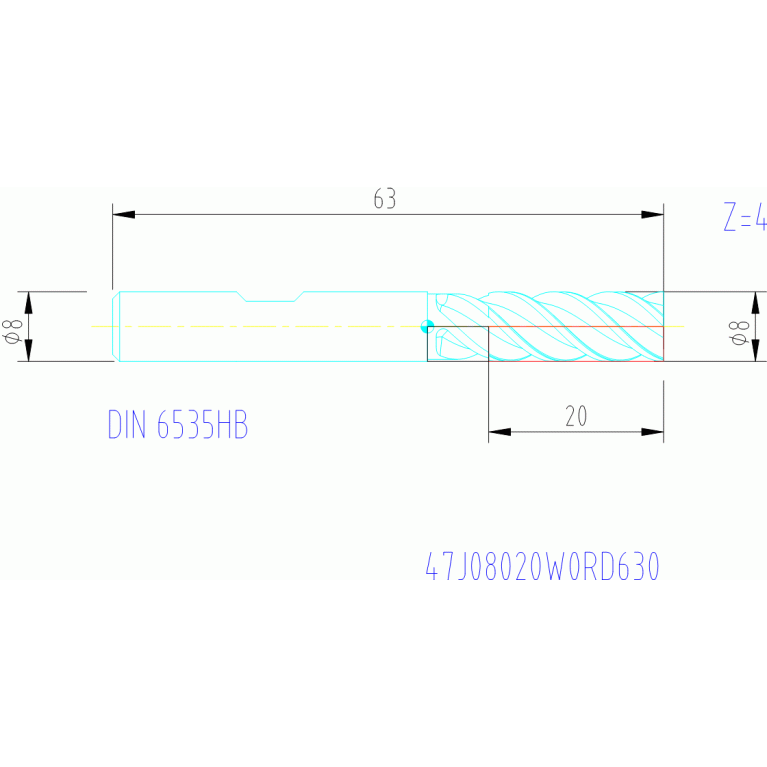

4 Flute End Mill - DIN 6535HB

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

3040128

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00801005

Name Identifying order number

47J08020W0RD630 IN2005

OAL Overall length

63 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.039 kg

ZEFP Peripheral effective cutting edge count
