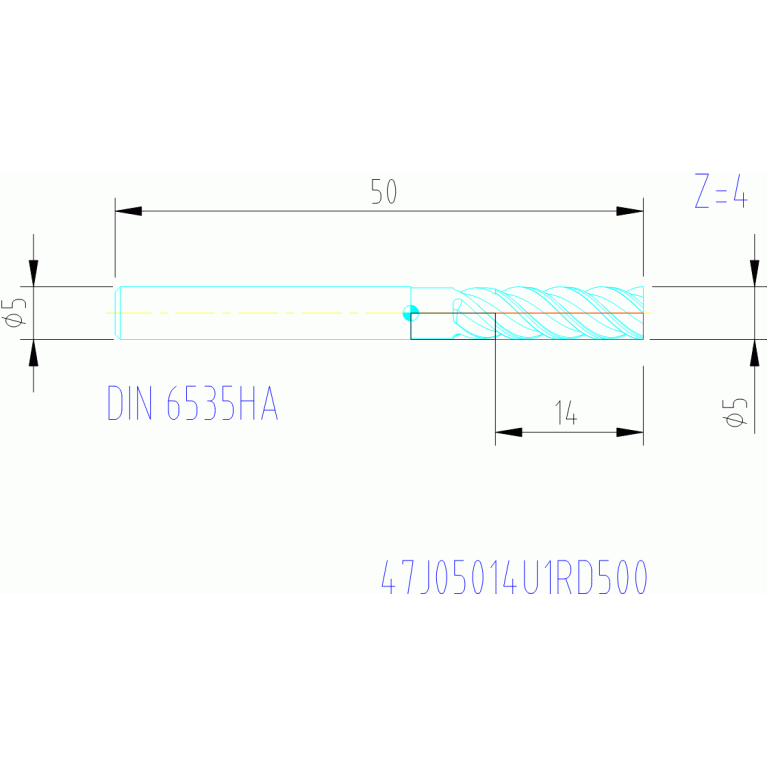

47J05014U1RD500 IN2005
47J05014U1RD500 IN2005
Артикул:
3040116
В наличии
Характеристики
APMX Depth of cut maximum
14 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAIN
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
5 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
ZYL00500105
F71 Number of corner designs
1
FamilyProducts
4 Flute End Mill - DIN 6535HA
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRD2ND Standard designation of the grade 2nd application
HC-K40
GRDMFG Grade manufacturers designation
IN2005
GRDPRIO Standard designation of the grade main application
HC-M35
HAND Cutting direction
R - Right
ID Technical product number
3040116
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0050
LOC-03 DCONMS Diameter
5 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00500105
Name Identifying order number
47J05014U1RD500 IN2005
OAL Overall length
50 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.013 kg
ZEFP Peripheral effective cutting edge count
4
