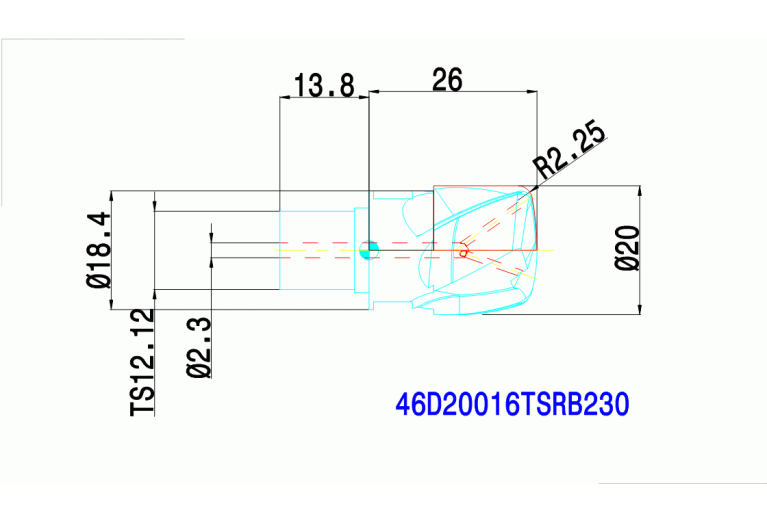

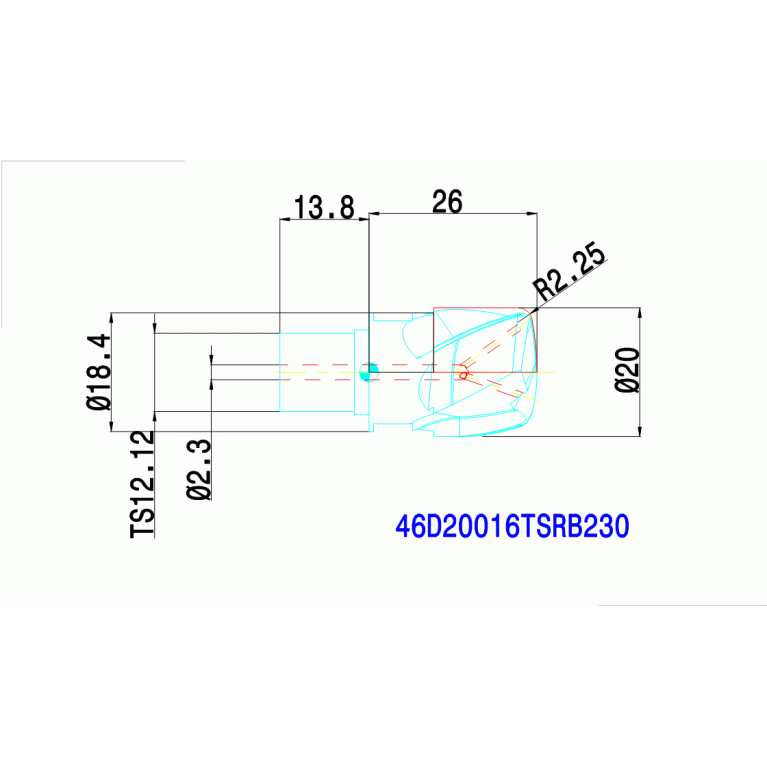

46D20016TSRB230 IN2005
46D20016TSRB230 IN2005
Артикул:
3086744
В наличии
Характеристики
APMX Depth of cut maximum
0.4 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
TiAIN
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
SAI01200115
DN Neck diameter
18.4 mm
F71 Number of corner designs
1
FamilyProducts
Finish mill lens-shape 46D with i.c.
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRD2ND Standard designation of the grade 2nd application
HC-K40
GRDMFG Grade manufacturers designation
IN2005
GRDPRIO Standard designation of the grade main application
HC-M35
HAND Cutting direction
R - Right
ID Technical product number
3086744
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAI Screw mounting ISCAR
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAI01200115
Name Identifying order number
46D20016TSRB230 IN2005
OAL Overall length
39.8 mm
RE Corner radius
2.25 mm
THSZMS Connection thread nominal size machine side
T12
Working process
No working processes available
WT Weight of item
0.102 kg
ZEFP Peripheral effective cutting edge count
3
