Главная Каталог продукции Toolunited 11 303-01 - Non-centre cutting end mill 46D10007T6RB100 IN2005

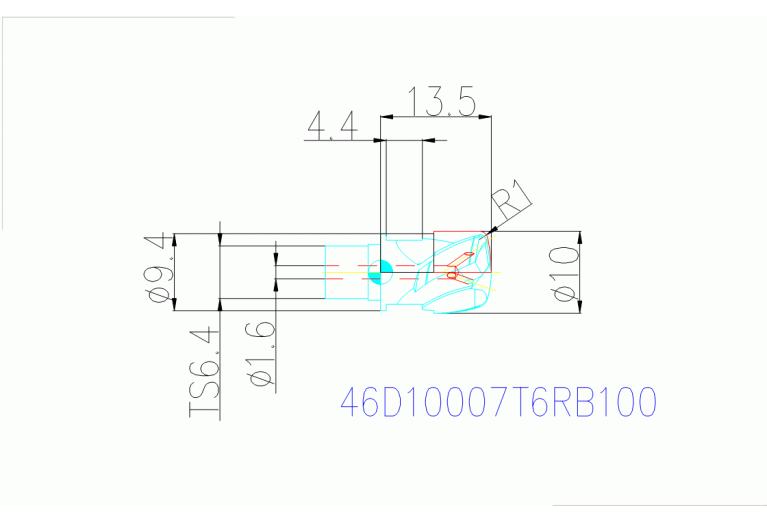

46D10007T6RB100 IN2005

Артикул: 3086739

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.1 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI00600115

DN Neck diameter

9.4 mm

F71 Number of corner designs

FamilyProducts

Finish mill lens-shape 46D with i.c.

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

3086739

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00600115

Name Identifying order number

46D10007T6RB100 IN2005

OAL Overall length

20.15 mm

RE Corner radius

1 mm

THSZMS Connection thread nominal size machine side

Working process

No working processes available

WT Weight of item

0.011 kg

ZEFP Peripheral effective cutting edge count
