Главная Каталог продукции Toolunited 11 303-01 - Non-centre cutting end mill 3188205

3188205

Артикул: 3188205

В наличии

В корзину

Описание

Характеристики

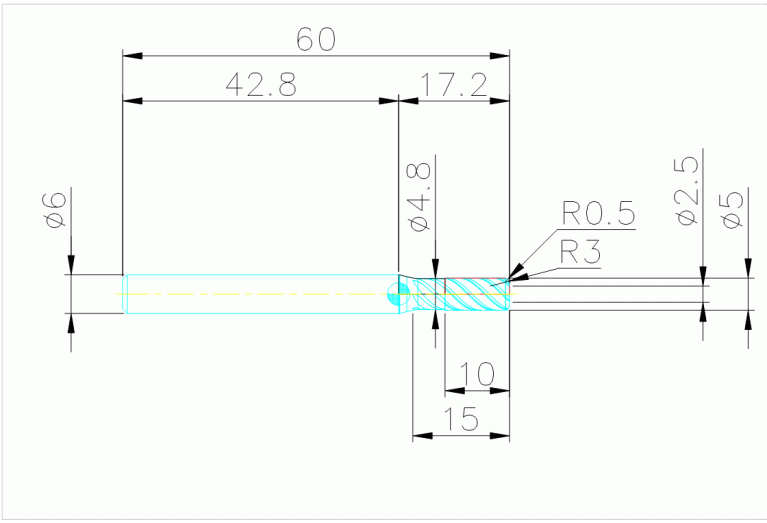

APMX Depth of cut maximum

10 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

Multi-SiC layer

COMPC Company code

OSG

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/1/2025

DIN

ZYL00600115

DN Neck diameter

4.8 mm

F71 Number of corner designs

F72 Corner design

3 - 2 radii

FamilyProducts

List4970 AM-HFC 5X10X0.6CR

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

-18 Degree

GAMP Rake angle axial

-18 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 / J61

ISYC Subclass

303-01 - Non-centre cutting end mill

LN Neck length

14.216 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600115

LPR Protruding length

17.2 mm

LS Shank length

42.8 mm

LU Usable length

15 mm

Materials

P,M,S,H

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3188205

OAL Overall length

60 mm

RE Corner radius

0.5 mm

RE2 Front radius

3 mm

RMPX Ramping angle maximum

2 Degree

SN B101 Length of the non-cutting cylindrical neck section

4.216 mm

SN B102 Length to the transition radius beginning

14.216 mm

SN E101 1. neck angle

0 Degree

SN E102 Starting angle Neck radius

5 Degree

SN E103 2. neck angle

15 Degree

SN G102 Transition radius

10 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FPL - Face milling,FZI - Circular milling

WT Weight of item

0.026 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
