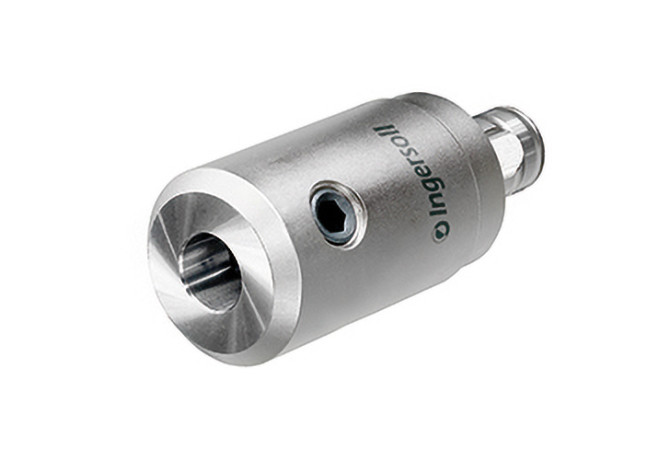

Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric Z4WBE06SA080

Z4WBE06SA080

Z4WBE06SA080 Z4WBE06SA080 Z4WBE06SA080 Z4WBE06SA080

Z4WBE06SA080

Ingersoll
Артикул: 3088111
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
10
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0060
DCONWS Diameter
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DF Flange diameter
25 mm
DIN
ITC04000215
FamilyProducts
Weldon / Whistle-Notch Adaption
HAND Cutting direction
R - Right
ID Technical product number
3088111
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
62 mm
LOC-01 CCFWS Connection code form
10
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0060
LOC-01 DCONWS Diameter
6 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00601015
LOC-02 DCONWS Diameter
6 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IL-K-1214
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ITC Ingersoll Tool connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ITC04000215
LPR Protruding length
80 mm
Name Identifying order number
Z4WBE06SA080
OAL Overall length
115 mm
WT Weight of item
0.57 kg
