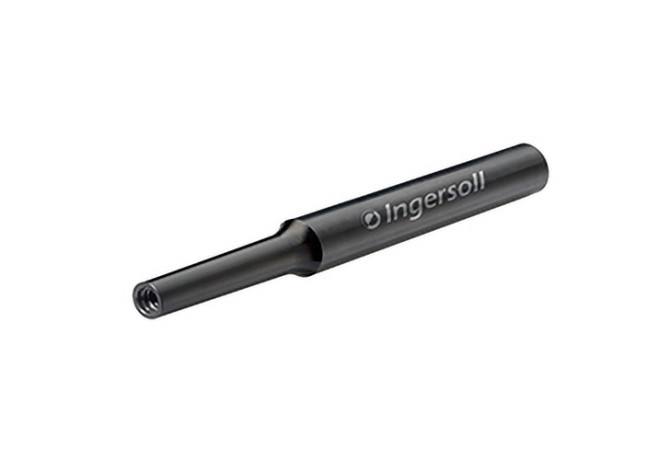

Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric S040T15SK100

S040T15SK100

S040T15SK100 S040T15SK100 S040T15SK100 S040T15SK100

S040T15SK100

Ingersoll
Артикул: 2927847
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SAI
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0150
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DF Flange diameter
23.9 mm
DIN
ZYL04000105
FamilyProducts
Conical steel shank
HAND Cutting direction
R - Right
ID Technical product number
2927847
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SAI Screw mounting ISCAR
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0150
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAI01500105
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04000105
Name Identifying order number
S040T15SK100
WT Weight of item
2.115 kg
