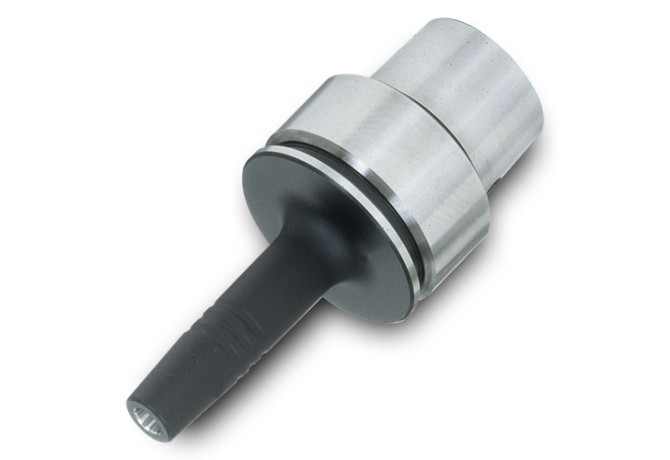

Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric HSKE40SRK3X45

HSKE40SRK3X45

HSKE40SRK3X45 HSKE40SRK3X45 HSKE40SRK3X45 HSKE40SRK3X45

HSKE40SRK3X45

Ingersoll
Артикул: 4540359
В наличии
В корзину
Описание
Характеристики
BD Body diameter
13 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0030
DCINTF Interference cutting diameter
10 mm
DCONWS Diameter
3 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
HSK04000395
FamilyProducts
HSK-E 40 Shrink In (thermic)
HAND Cutting direction
N - Neutral
ID Technical product number
4540359
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
45 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0030
LOC-01 DCONWS Diameter
3 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00300115
LOC-02 DCONWS Diameter
3 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IL-K-1203
LOC-03 CCFMS Connection code form
03
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK04000395
LPR Protruding length
65 mm
LSCN Clamping length minimum
16 mm
LSCX Clamping length maximum
16 mm
Name Identifying order number
HSKE40SRK3X45
TA Taper angle
4 Degree
WT Weight of item
0.3 kg
