Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric HSKA63SEMC22X60

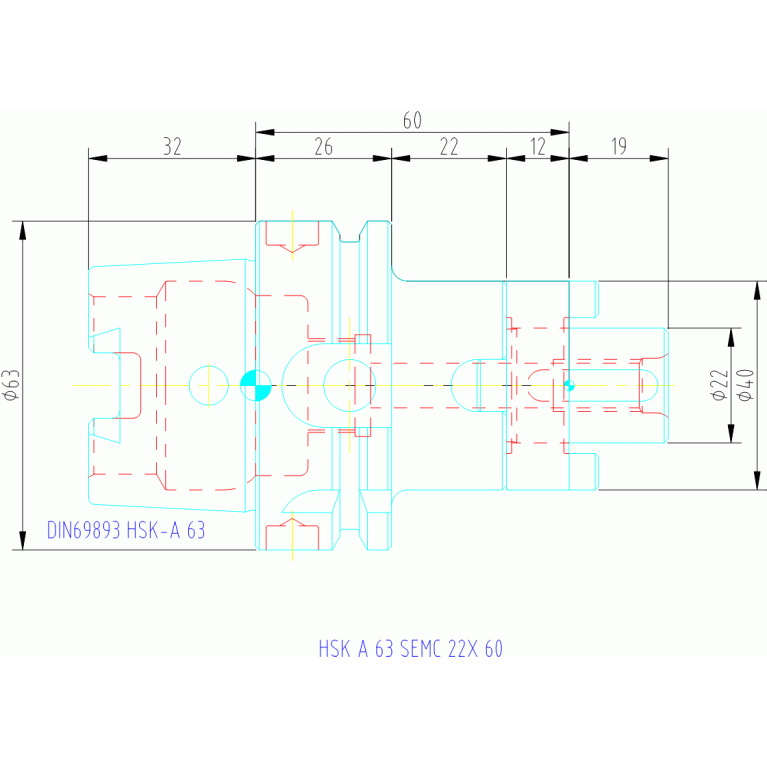

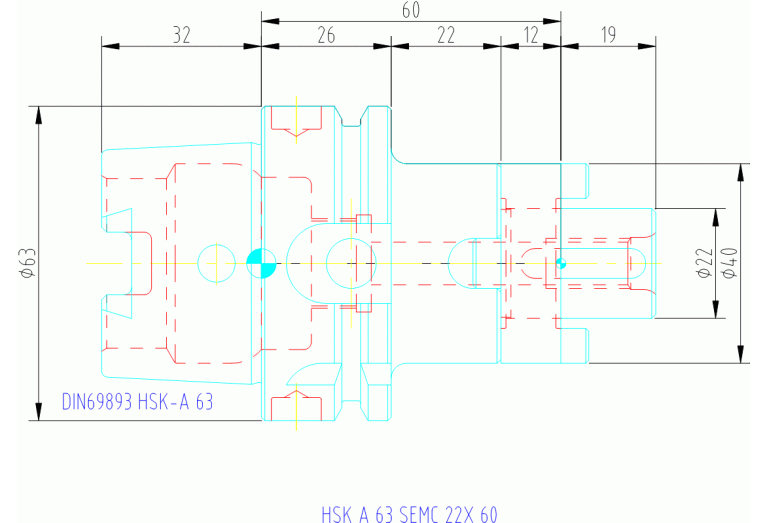

HSKA63SEMC22X60

HSKA63SEMC22X60 HSKA63SEMC22X60 HSKA63SEMC22X60

HSKA63SEMC22X60

Ingersoll
Артикул: 4542290
В наличии
В корзину
Описание
Характеристики
BD Body diameter
40 mm
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0220
DCONWS Diameter
22 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DF Flange diameter
63 mm
DIN
HSK06300185
FamilyProducts
HSK-A50/63/100 Combi - Arbors
HAND Cutting direction
N - Neutral
ID Technical product number
4542290
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
34 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0220
LOC-01 DCONWS Diameter
22 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02200200
LOC-02 DCONWS Diameter
22 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IL-K-1288
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300185
LPR Protruding length
60 mm
LSCN Clamping length minimum
19 mm
LSCX Clamping length maximum
19 mm
Name Identifying order number
HSKA63SEMC22X60
WT Weight of item
1.1 kg
