Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric HSKA100ER16X160M

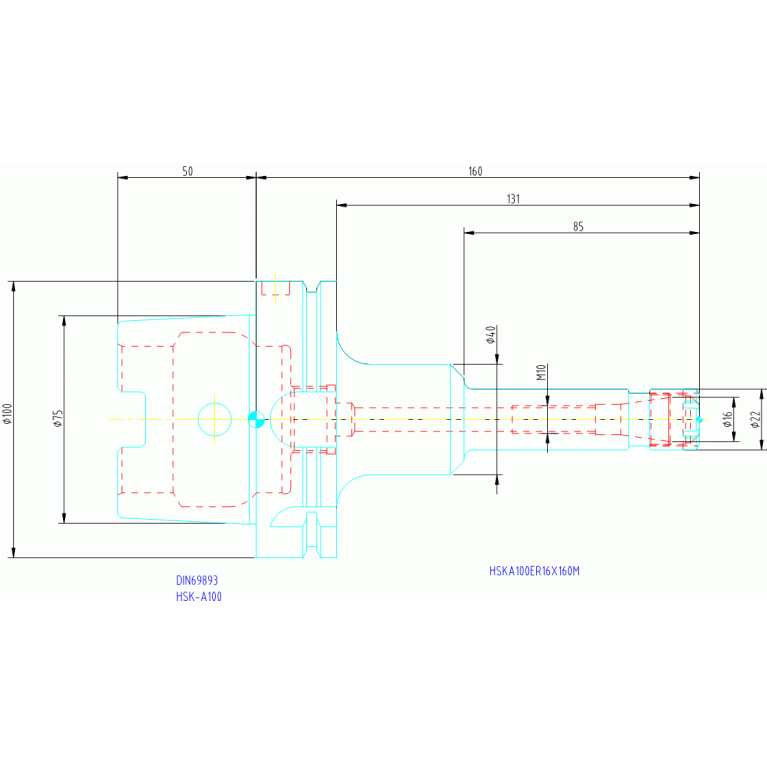

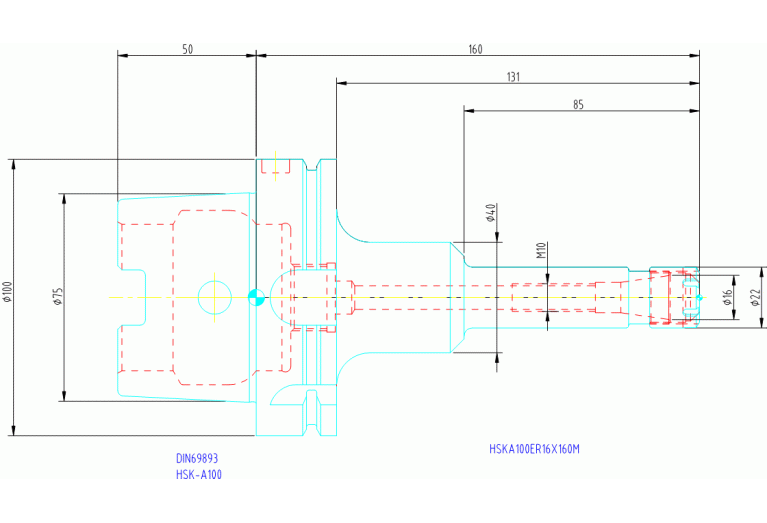

HSKA100ER16X160M

HSKA100ER16X160M HSKA100ER16X160M HSKA100ER16X160M

HSKA100ER16X160M

Ingersoll
Артикул: 4542197
В наличии
В корзину
Описание
Характеристики
BD Body diameter 2
40 mm
CCFWS Connection code form
02
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DF Flange diameter
22 mm
DIN
HSK10000195
FamilyProducts
HSK-A 50/63/100 Collet chucks ER16/20 "mini"
HAND Cutting direction
N - Neutral
ID Technical product number
4542197
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01600295
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IL-K-1276
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
131 mm
Name Identifying order number
HSKA100ER16X160M
OAL Overall length
160 mm
WT Weight of item
2.9 kg
