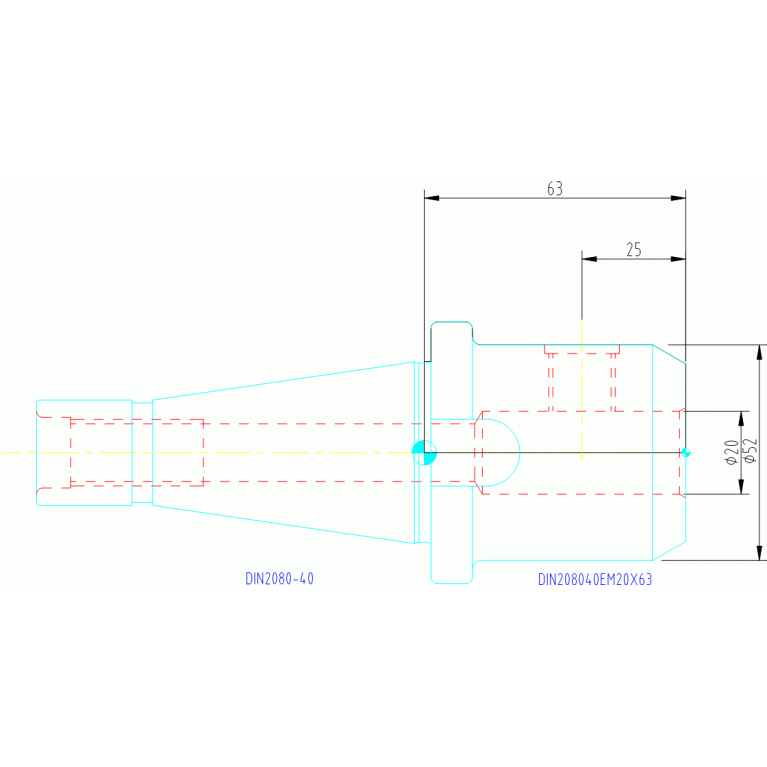

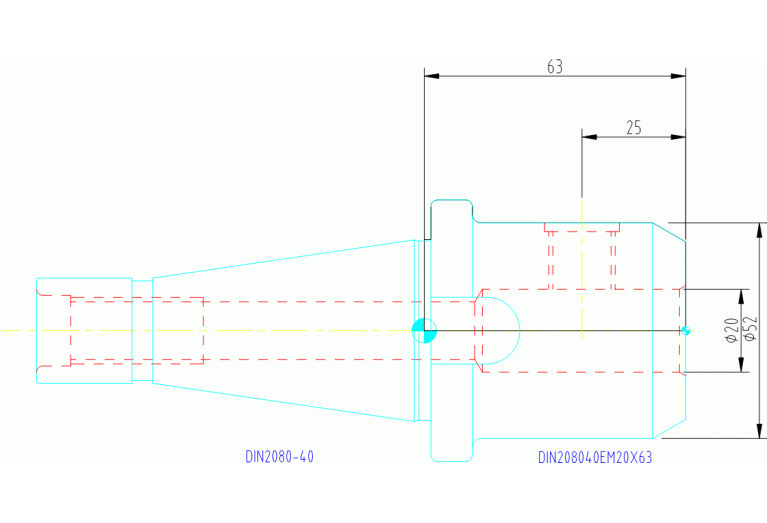

Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric DIN208040EM20X63

DIN208040EM20X63

DIN208040EM20X63 DIN208040EM20X63 DIN208040EM20X63

DIN208040EM20X63

Ingersoll
Артикул: 4502682
В наличии
В корзину
Описание
Характеристики
BD Body diameter
52 mm
CCFWS Connection code form
10
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCONWS Diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
SKG04002195
FamilyProducts
ISO 40/50 DIN2080 End Mill Weldon
HAND Cutting direction
N - Neutral
ID Technical product number
4502682
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
51.4 mm
LOC-01 CCFWS Connection code form
10
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02001015
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04002195
LPR Protruding length
63 mm
Name Identifying order number
DIN208040EM20X63
WT Weight of item
1.4 kg
