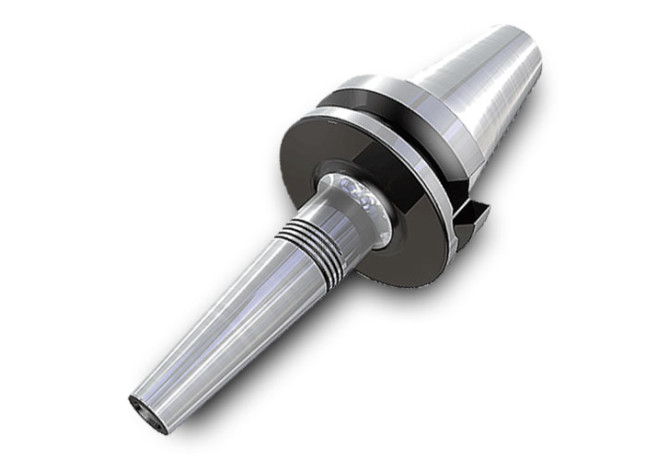

Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric BT40SRK12x85

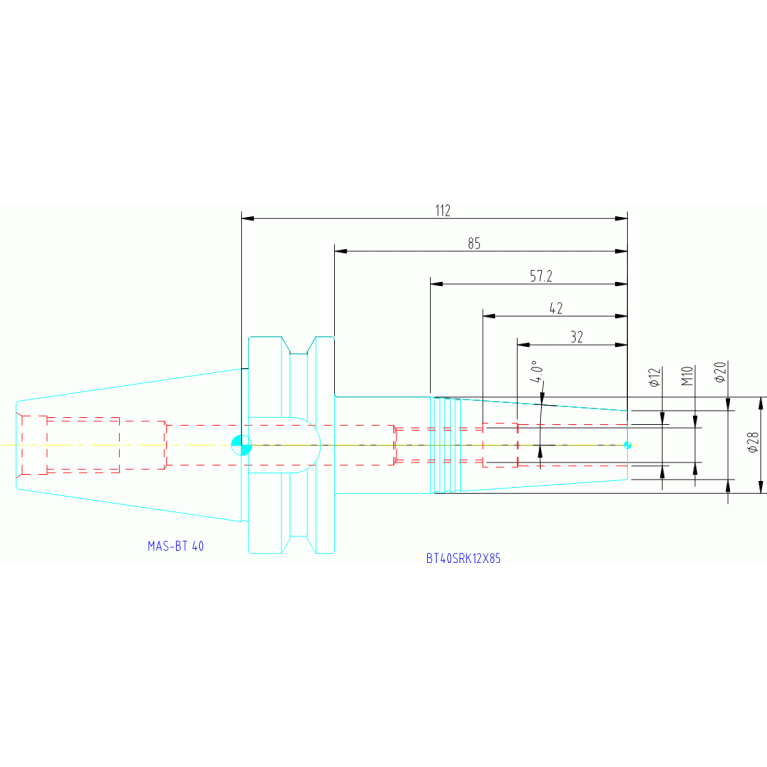

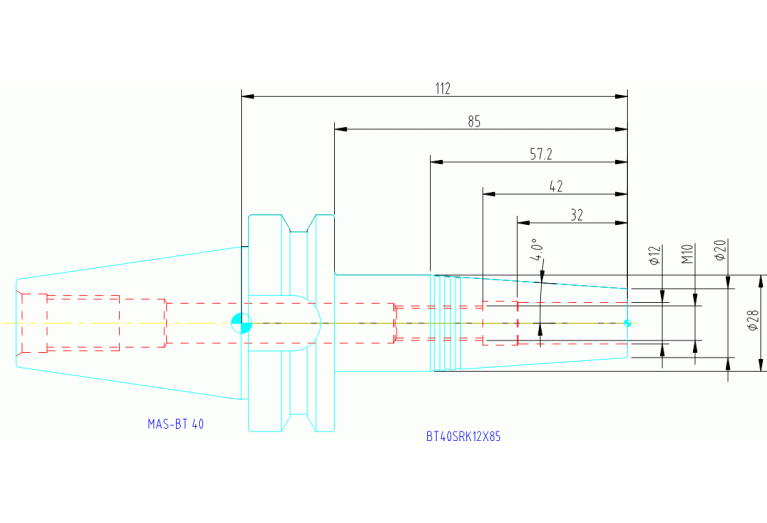

BT40SRK12x85

BT40SRK12x85 BT40SRK12x85 BT40SRK12x85 BT40SRK12x85

BT40SRK12x85

Ingersoll
Артикул: 4543121
В наличии
В корзину
Описание
Характеристики
BD Body diameter
28 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0120
DCINTF Interference cutting diameter
20 mm
DCONWS Diameter
12 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
SKG04005195
FamilyProducts
MAS BT 40 Shrink-In (thermic)
HAND Cutting direction
N - Neutral
ID Technical product number
4543121
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
85 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0120
LOC-01 DCONWS Diameter
12 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01200115
LOC-03 CCFMS Connection code form
51
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005195
LPR Protruding length
112 mm
LSCN Clamping length minimum
42 mm
LSCX Clamping length maximum
42 mm
Name Identifying order number
BT40SRK12x85
TA Taper angle
4 Degree
WT Weight of item
1.2 kg
