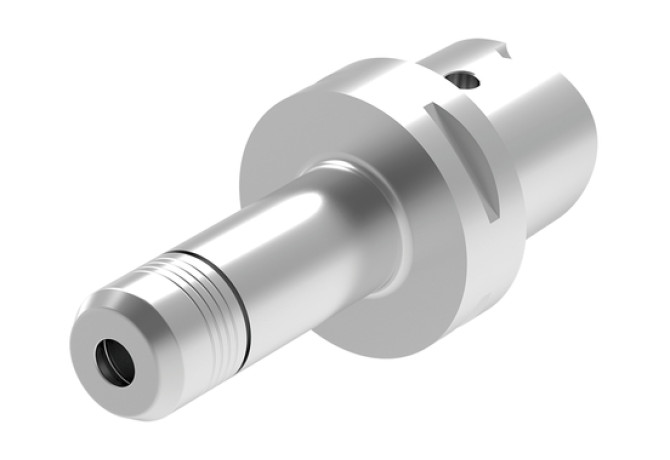

Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric 84112613

84112613

Артикул: 84112613

В наличии

В корзину

Описание

Характеристики

BLQ Balance quality code

G2,5/25000

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SZD

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0400

DIN

CCS06300195

DLN Diameter lock nut

63 mm

FamilyProducts

SPANNZANGENFUTTER

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0400

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD04000295

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR Protruding length

100 mm

LSCN Clamping length minimum

46 mm

LSCX Clamping length maximum

86 mm

Name Identifying order number

84112613

THSZWS Connection thread nominal size workpiece side

M50x1,5
