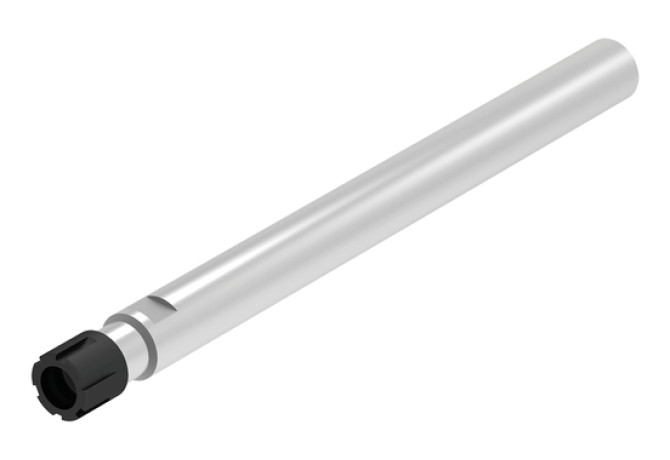

Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric 83453081

83453081

Артикул: 83453081

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SZD

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0080

Delivery state valid from

10/1/2021

DIN

ZYL00800115

DLN Diameter lock nut

12 mm

FamilyProducts

SPANNZANGENFUTTER

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0080

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD00800295

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LPR Protruding length

26 mm

Name Identifying order number

83453081

OAL Overall length

81 mm

THSZWS Connection thread nominal size workpiece side

M10x0,75
