Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric 8231021478

8231021478

Артикул: 8231021478

В наличии

В корзину

Описание

Характеристики

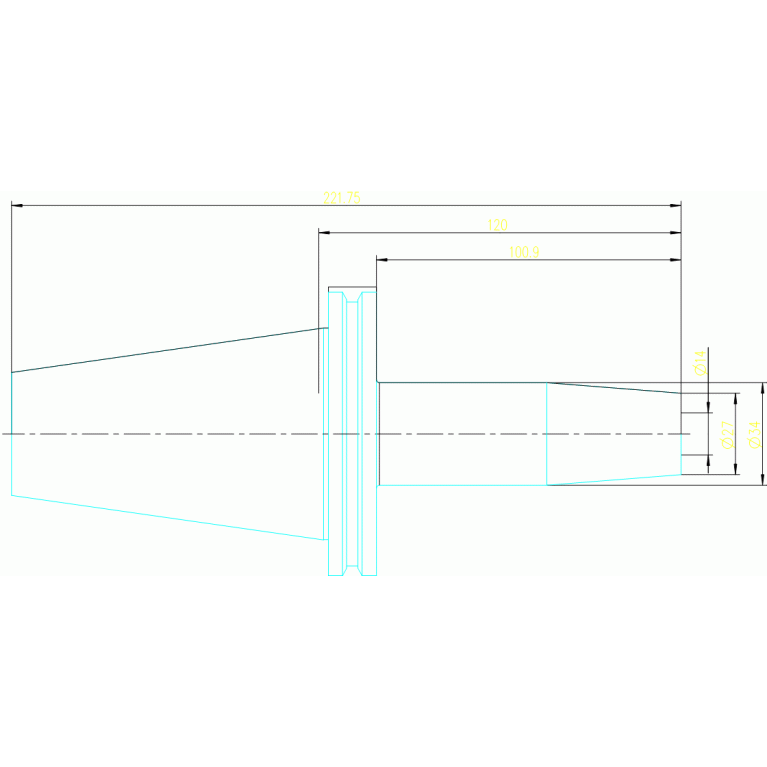

BD Body diameter

34 mm

BLQ Balance quality code

G2,5/18000

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0140

DCINTF Interference cutting diameter

27 mm

DCONWS Diameter

14 mm

Delivery state valid from

10/1/2021

DIN

SKG05001795

FamilyProducts

SCHRUMPFAUFNAHME

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0140

LOC-01 DCONWS Diameter

14 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01400115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001795

LPR Protruding length

120 mm

LSCN Clamping length minimum

37 mm

LSCX Clamping length maximum

47 mm

Name Identifying order number

8231021478

OAL Overall length

221.75 mm
