Главная Каталог продукции Toolunited 11 401-01 - Converter, rotationally symmetric 81731310

81731310

81731310 81731310 81731310

81731310

Ceratizit
Артикул: 81731310
В наличии
В корзину
Описание
Характеристики

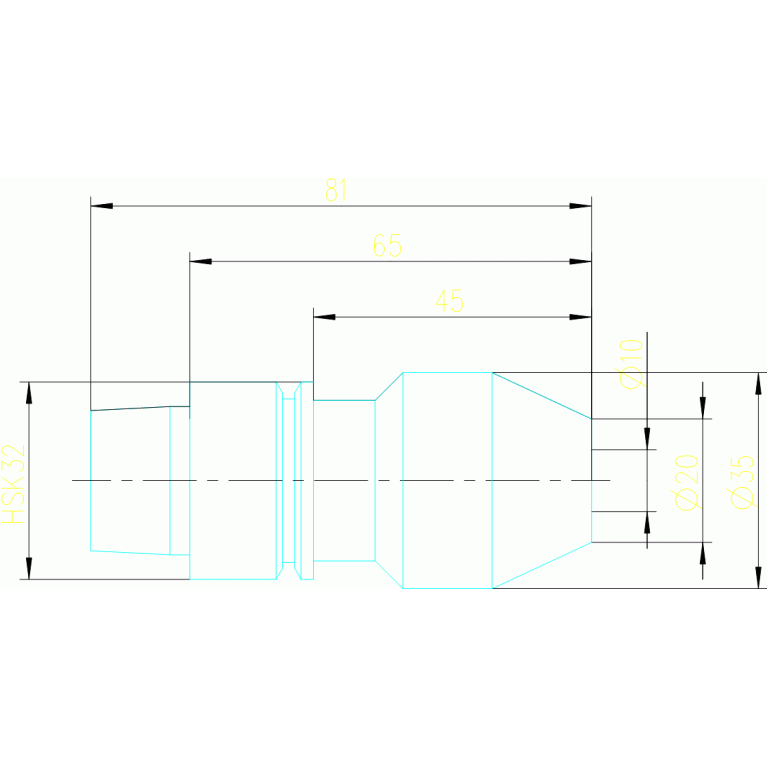

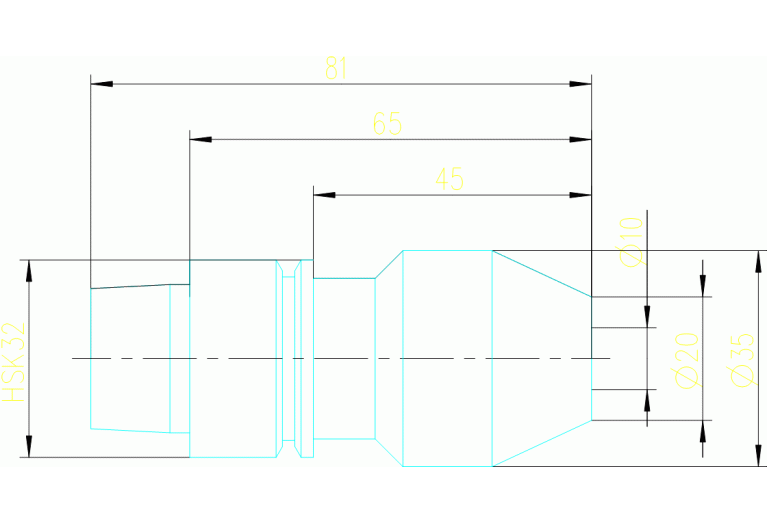

BD Body diameter
35 mm
BLQ Balance quality code
G2,5/18000
CCFWS Connection code form
10
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0100
DCINTF Interference cutting diameter
20 mm
DCONWS Diameter
10 mm
Delivery state valid from
10/1/2021
DIN
HSK03200195
FamilyProducts
ZYLINDERSCHAFTAUFNAHME WELDON
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
10
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01001015
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK03200195
LPR Protruding length
65 mm
Name Identifying order number
81731310
OAL Overall length
81 mm
