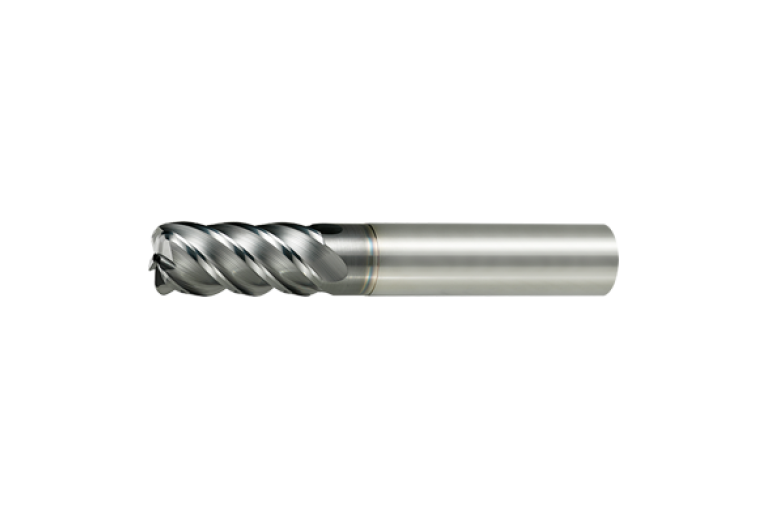

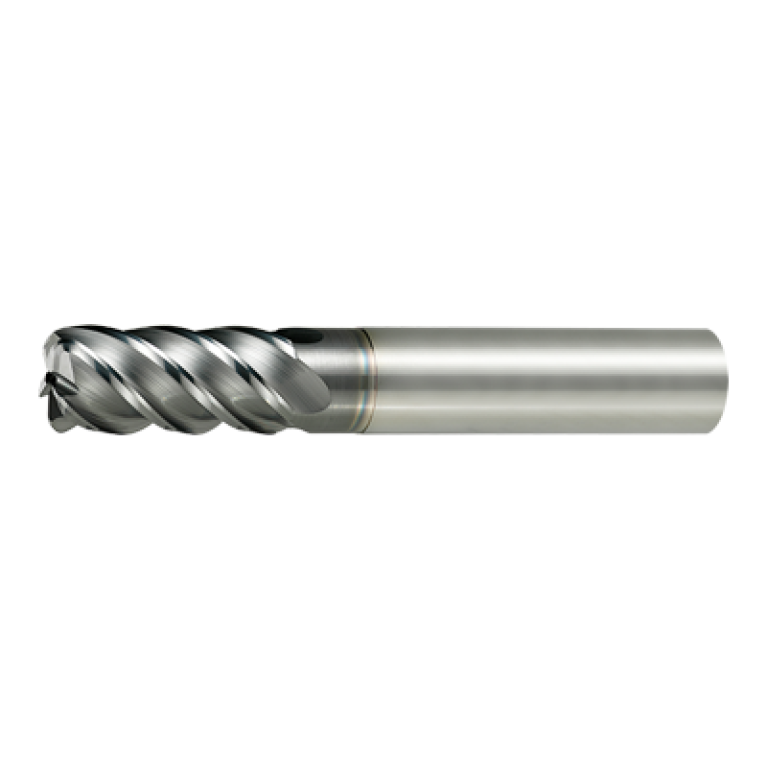

Главная Каталог продукции Toolunited 11 303-02 - Centre cutting end mill VQT5MVRB160R300N48C

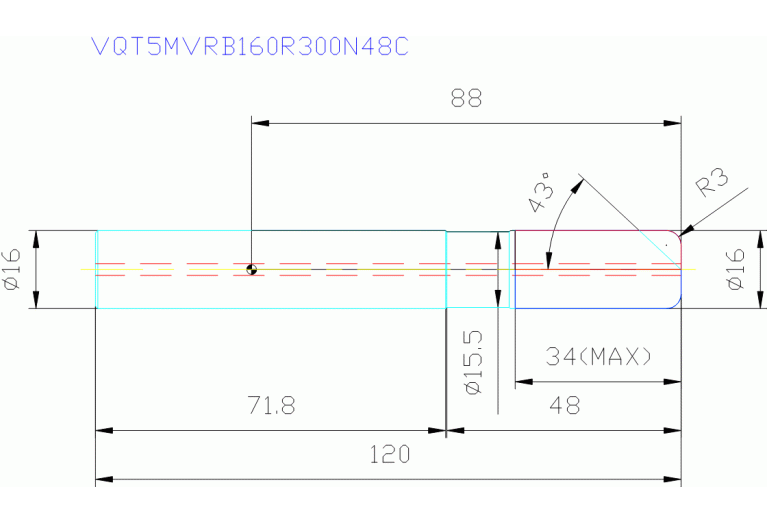

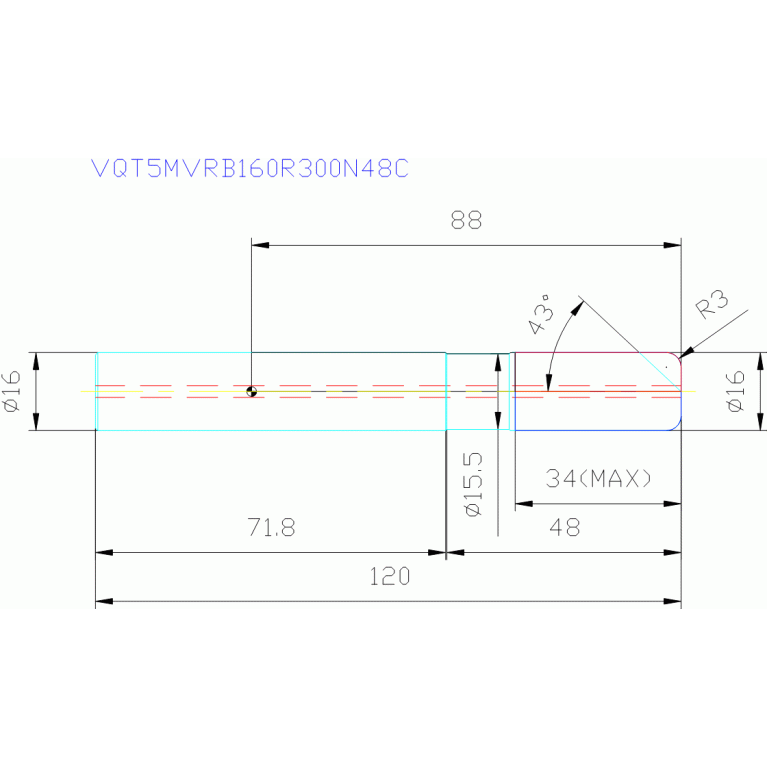

VQT5MVRB160R300N48C

Артикул: 10614426

В наличии

В корзину

Описание

Характеристики

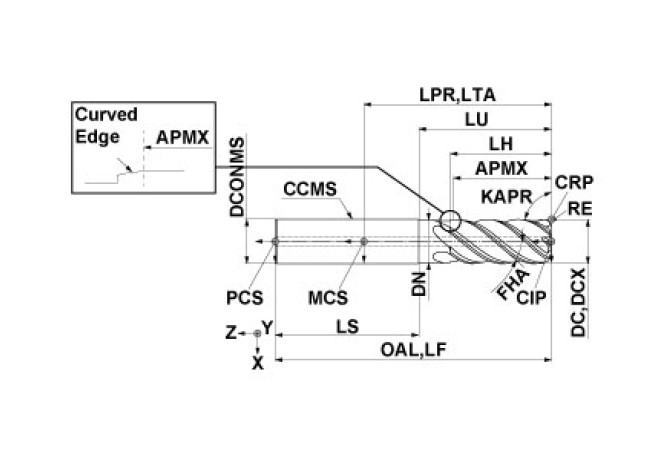

APMX Depth of cut maximum

34 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

AlCrN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL01600115

DN Neck diameter

15.5 mm

FamilyProducts

Corner Radius End Mill for High Efficiency Titanium Alloy Machining

FHA Flute helix angle

43 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10614426

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

120 mm

LH Head length

34.25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600115

LPR Protruding length

88 mm

LS Shank length

71.8 mm

LU Usable length

48 mm

Name Identifying order number

VQT5MVRB160R300N48C

OAL Overall length

120 mm

RE Corner radius

3 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FPL - Face milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
