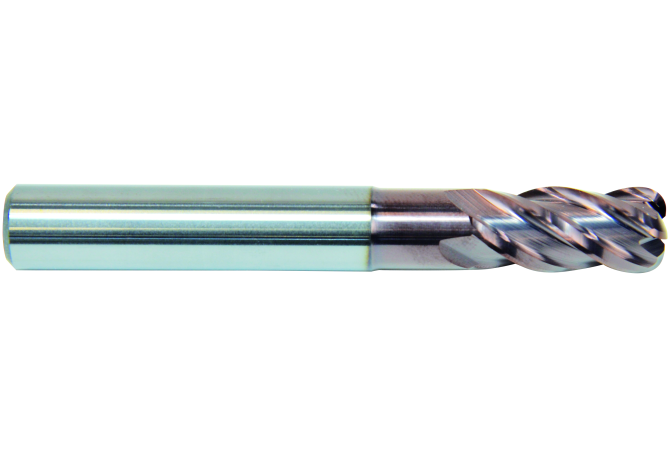

Главная Каталог продукции Toolunited 11 303-02 - Centre cutting end mill TM-4RP-D10.0R3.0 KMS405

TM-4RP-D10.0R3.0 KMS405

Артикул: TM-4RP-D10.0R3.0 KMS405

В наличии

В корзину

Описание

Характеристики

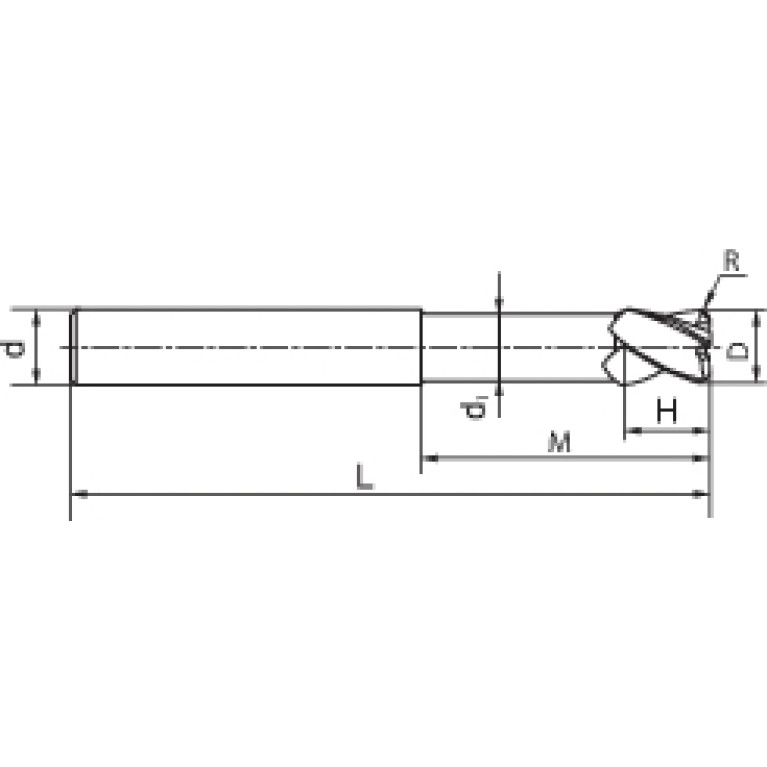

APMX Depth of cut maximum

20 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlSiN

COMPC Company code

ZCC - ZCC Cutting Tools

CRCLMFG Chip removal class mfg

CRCLVDI Chip removal class

10-25

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

ZYL01000105

DN Neck diameter

9.4 mm

F71 Number of corner designs

FamilyProducts

Torus mill

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KMS405

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Identifying order number

TM-4RP-D10.0R3.0 KMS405

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LN Neck length

32 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LS Shank length

43 mm

MILTTY Mill tool type ISO

N - Torus End Mill

OAL Overall length

75 mm

RE Corner radius

3 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
