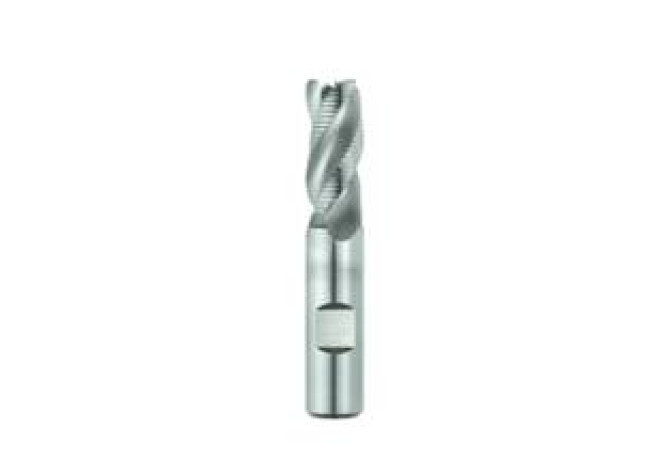

Главная Каталог продукции Toolunited 11 303-02 - Centre cutting end mill RTM447.500D1C025.3Z3

RTM447.500D1C025.3Z3

RTM447.500D1C025.3Z3 RTM447.500D1C025.3Z3 RTM447.500D1C025.3Z3 RTM447.500D1C025.3Z3

RTM447.500D1C025.3Z3

Seco
Артикул: 17010516
В наличии
В корзину
Описание
Характеристики

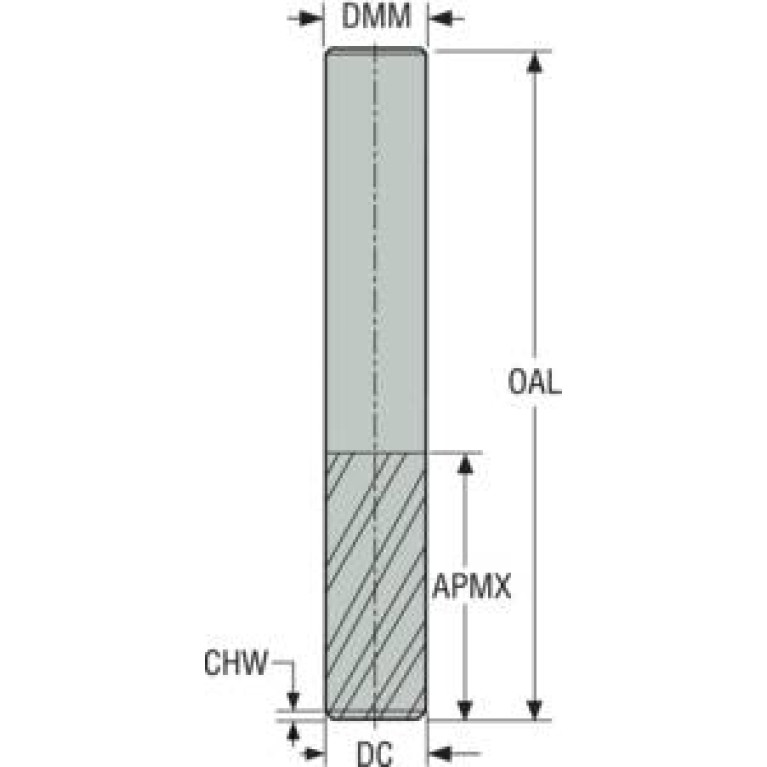

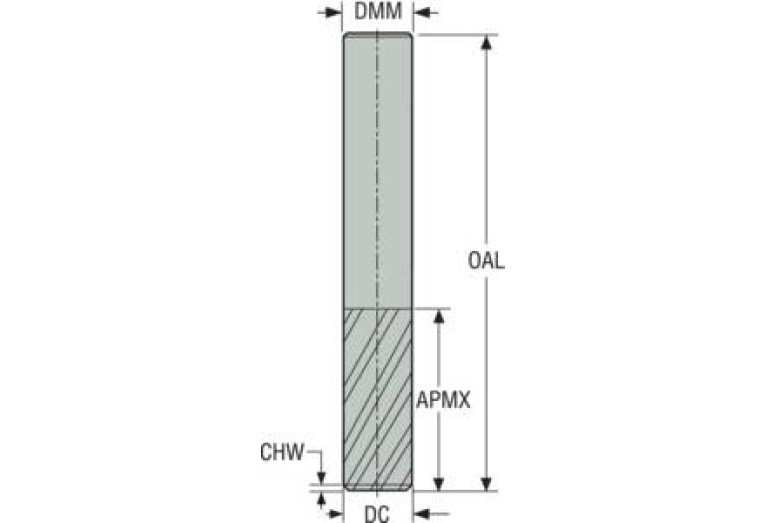

APMX Depth of cut maximum
12.7 mm
CHW Corner chamfer width
0.762 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
12.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL05001025
F71 Number of corner designs
1
FamilyProducts
RTM447.500D1C025.3Z3
FHA Flute helix angle
36 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
36 Degree
GAMP Rake angle axial
13 Degree
HAND Cutting direction
R - Right
ID Technical product number
17010516
Interface codes
J6 / J61
ISO
ZYL10R5000h$05
ISYC Subclass
303-02 - Centre cutting end mill
KCH Corner chamfer angle
45 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
12.7 mm
LOC-03 ISO
ZYL10R5000h$05
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05001025
LS Shank length
45.24 mm
Name Identifying order number
RTM447.500D1C025.3Z3
NameAnsi Identifying order number inch alternative
RTM447-0.500-D1-C025.3-Z3
OAL Overall length
65.088 mm
Working process
No working processes available
WT Weight of item
0.059 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
