Главная Каталог продукции Toolunited 11 303-02 - Centre cutting end mill Q12-HMX-4E-D20.0 KMG5515

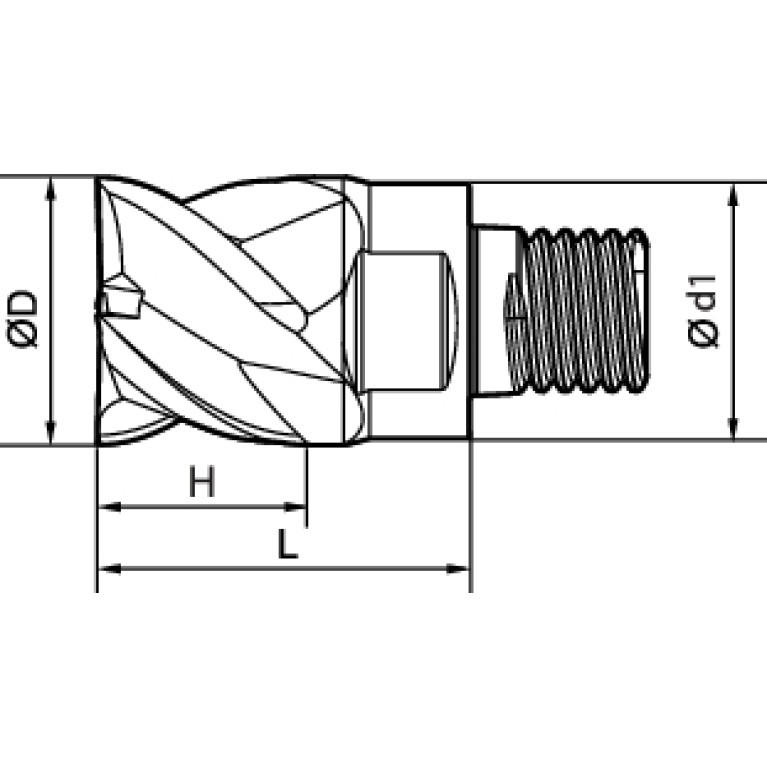

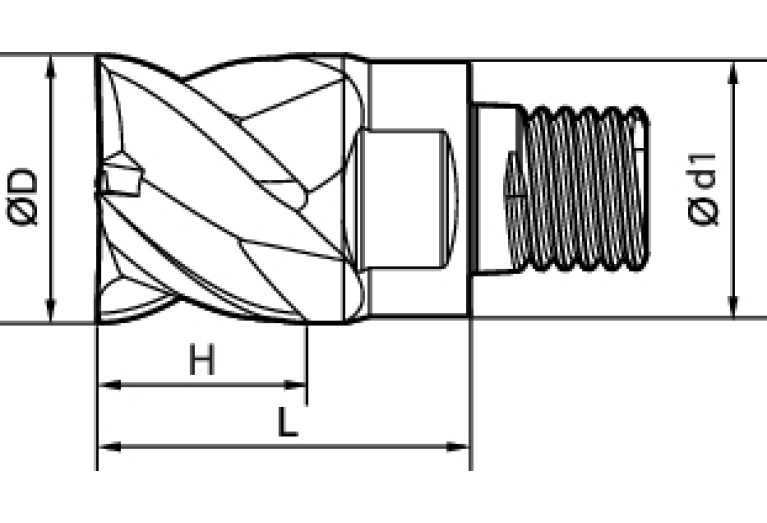

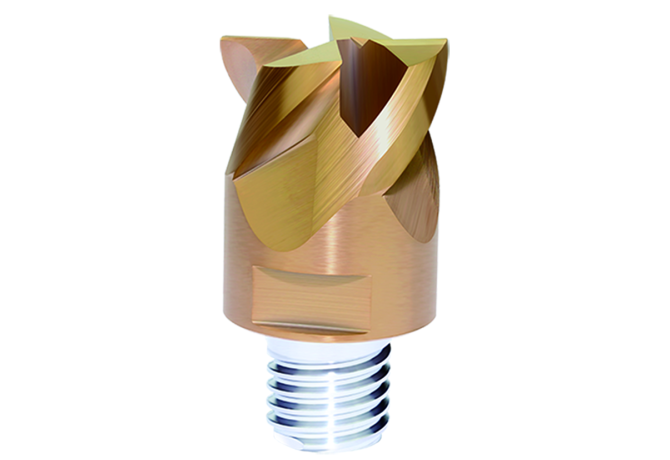

Q12-HMX-4E-D20.0 KMG5515

Артикул: Q12-HMX-4E-D20.0 KMG5515

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

11 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlTiSiN

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

SAZ01200185

DN Neck diameter

19 mm

F71 Number of corner designs

FamilyProducts

Square shoulder mill

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

45 Degree

GAMP Rake angle axial

0 Degree

GRDMFG Grade manufacturers designation

KMG5515

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Identifying order number

Q12-HMX-4E-D20.0 KMG5515

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

25.5 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAZ

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

19 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAZ01200185

LPR Protruding length

25.5 mm

OAL Overall length

38.5 mm

RMPX Ramping angle maximum

45 Degree

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.104 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
