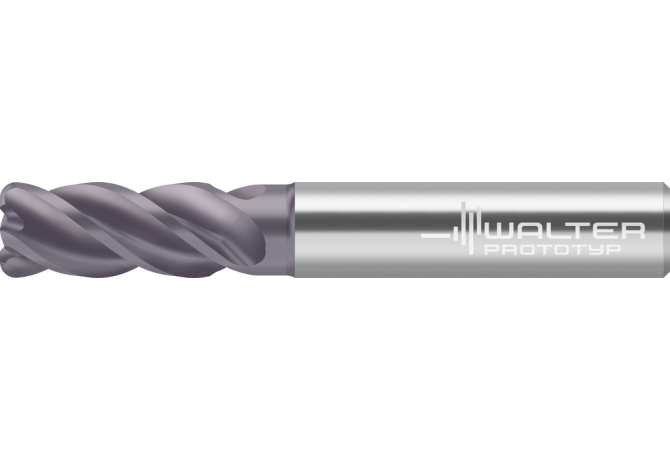

Главная Каталог продукции Toolunited 11 303-02 - Centre cutting end mill MC377-03.0A4B030C-WK40EA

MC377-03.0A4B030C-WK40EA

Артикул: 7881888

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

8 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00600105

DN Neck diameter

2.9 mm

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot milling cutter MC377

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10.5 Degree

GAMP Rake angle axial

4 Degree

GRDMFG Grade manufacturers designation

WK40EA

HAND Cutting direction

R - Right

ID Technical product number

7881888

Interface codes

J6 / J61

ISO

ZYL01F6000h$05

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

57 mm

LN Neck length

9.913 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$05

LOC-03 ISO

ZYL01F6000h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

21 mm

LS Shank length

36 mm

Materials

P,M,S

Name Identifying order number

MC377-03.0A4B030C-WK40EA

OAL Overall length

57 mm

RE Corner radius

0.3 mm

RMPX Ramping angle maximum

6 Degree

RPMX Rotational speed maximum

80000 1/min

STDLET Standard letter to the standard number

STDNO Standard

DIN 6527 L

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.023 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
