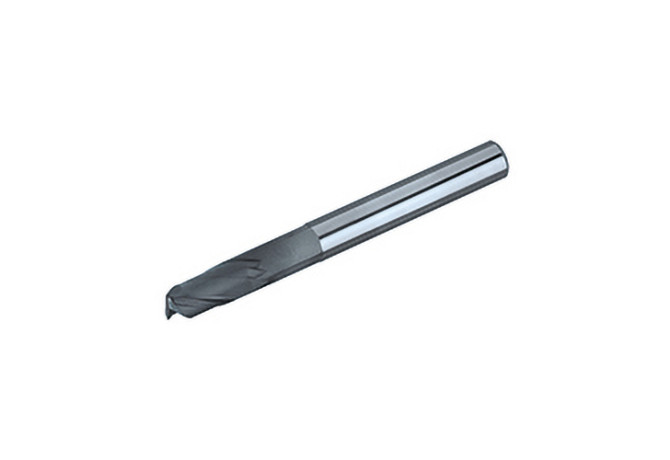

Главная Каталог продукции Toolunited 11 303-02 - Centre cutting end mill INDIA060.050.036Z2 IN3005

INDIA060.050.036Z2 IN3005

INDIA060.050.036Z2 IN3005 INDIA060.050.036Z2 IN3005 INDIA060.050.036Z2 IN3005 INDIA060.050.036Z2 IN3005

INDIA060.050.036Z2 IN3005

Ingersoll
Артикул: 3055544
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
10 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
PKD
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
ZYL00600105
DN Neck diameter
5.8 mm
F71 Number of corner designs
1
FamilyProducts
Torus end mill for machining graphite, z=2/3/4
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
IN3005
HAND Cutting direction
R - Right
ID Technical product number
3055544
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600105
Name Identifying order number

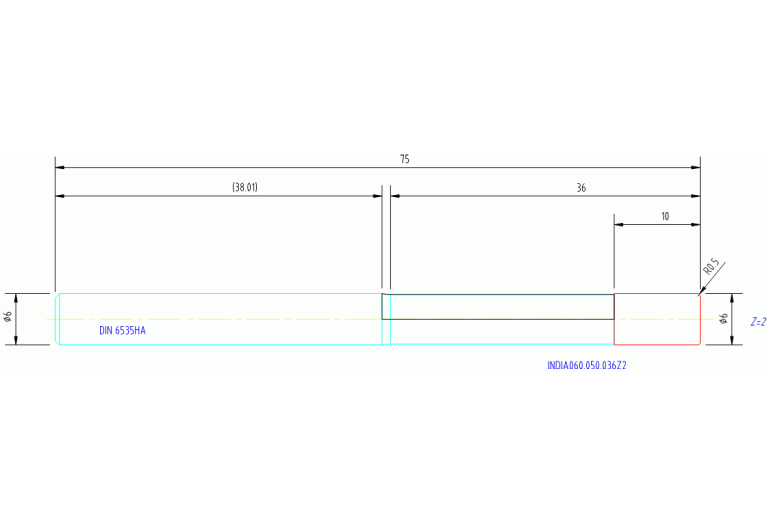

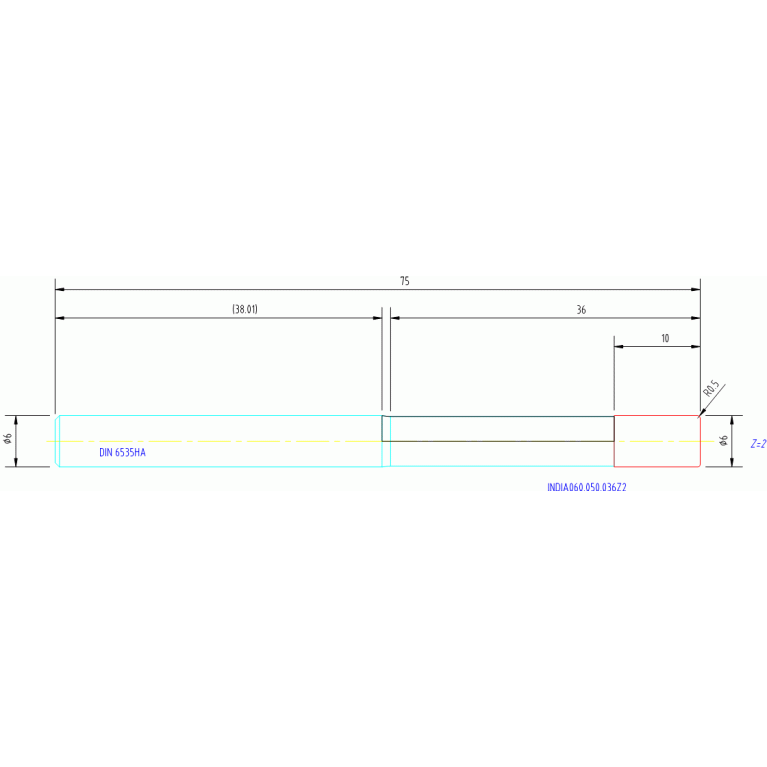

INDIA060.050.036Z2 IN3005
OAL Overall length
75 mm
RE Corner radius
0.5 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.065 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
