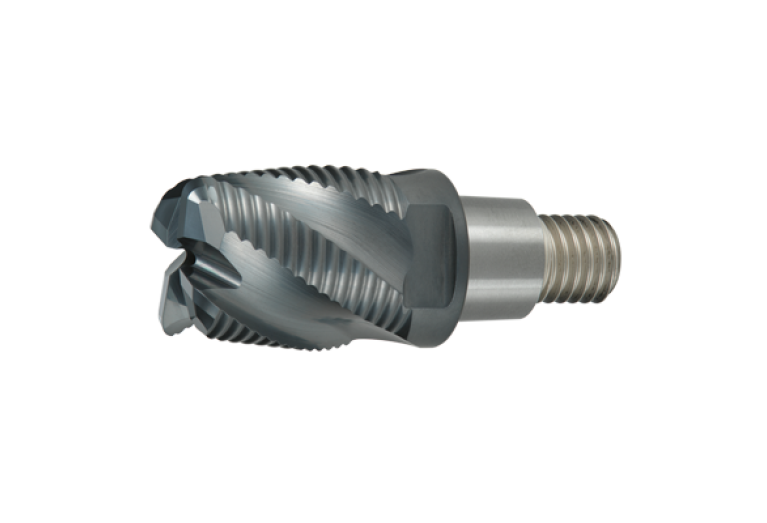

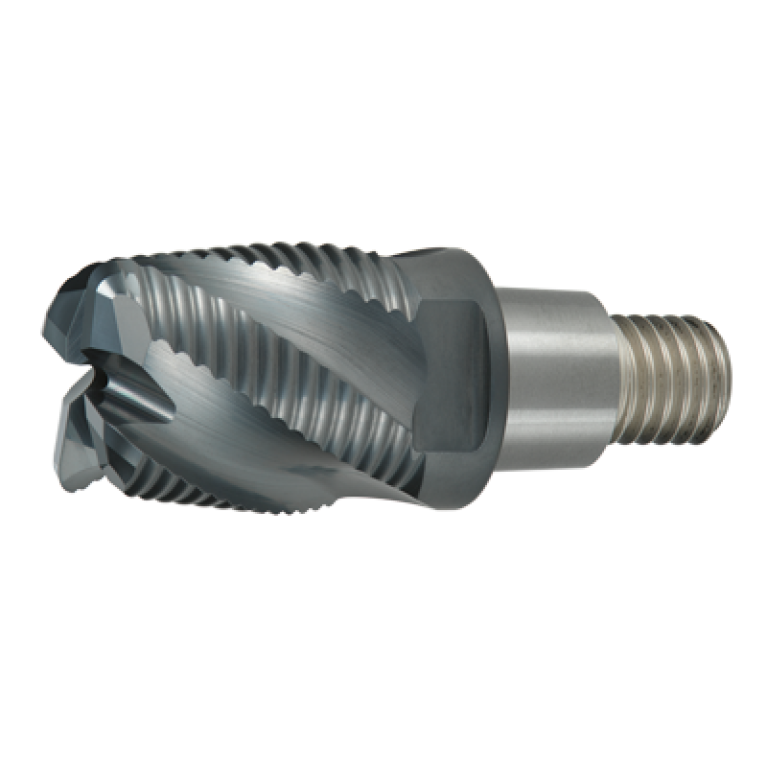

IMX16RC4F160R10016C EP7020

Артикул: 10619964

В наличии

В корзину

Описание

Характеристики

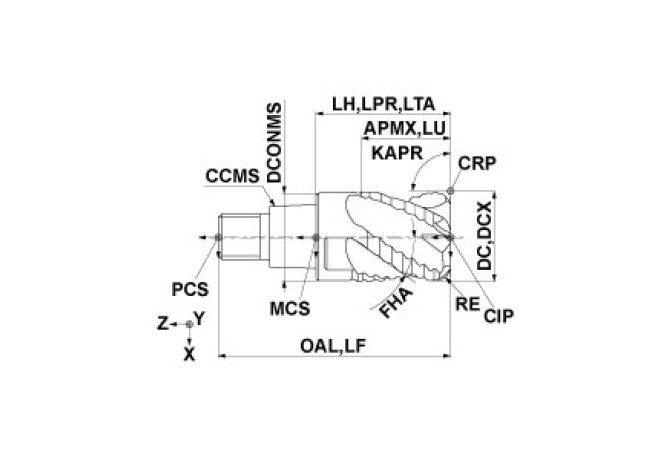

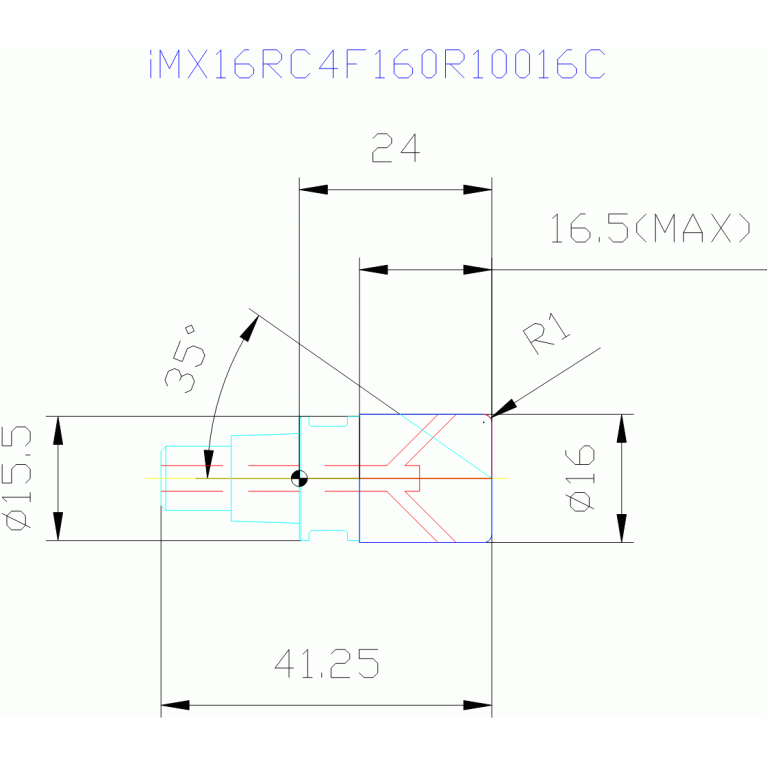

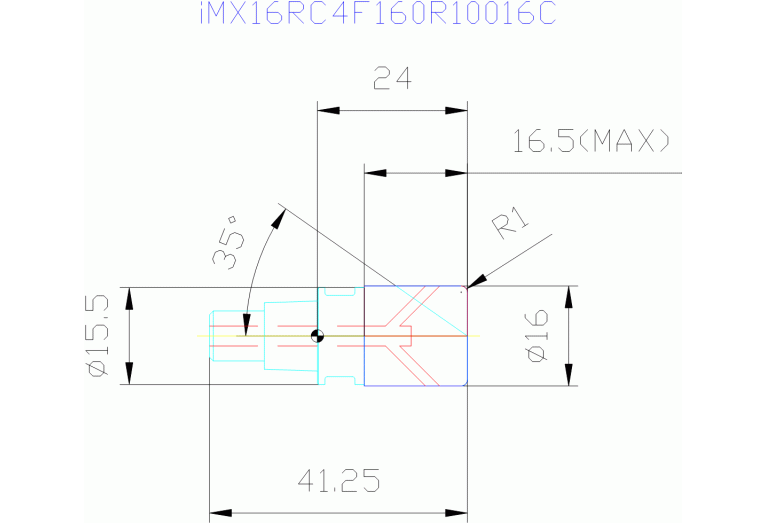

APMX Depth of cut maximum

16.5 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SAD01600105

F71 Number of corner designs

FamilyProducts

solid end mills

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10619964

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

41.3 mm

LH Head length

24 mm

LN Neck length

16.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

15.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAD01600105

LPR Protruding length

24 mm

LS Shank length

24.8 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

IMX16RC4F160R10016C EP7020

OAL Overall length

41.3 mm

RE Corner radius

1 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
