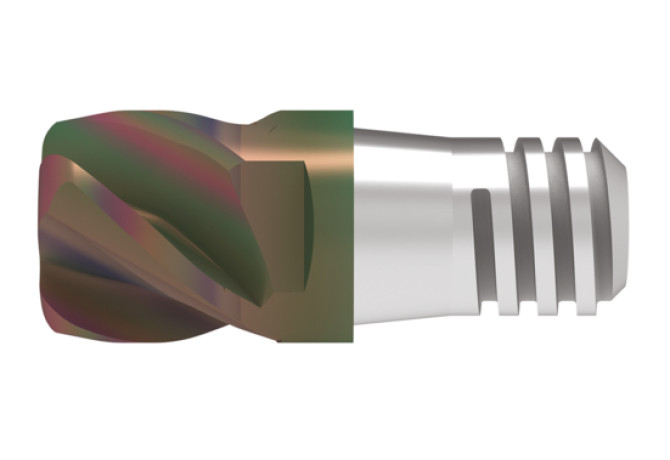

Главная Каталог продукции Toolunited 11 303-02 - Centre cutting end mill 5287010005

5287010005

Артикул: 5287010005

В наличии

В корзину

Описание

Характеристики

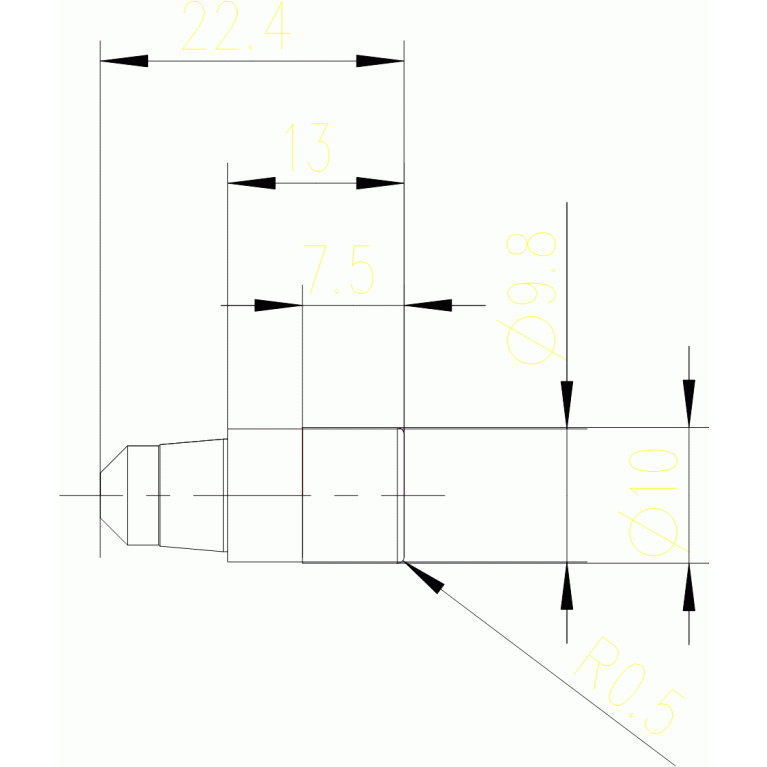

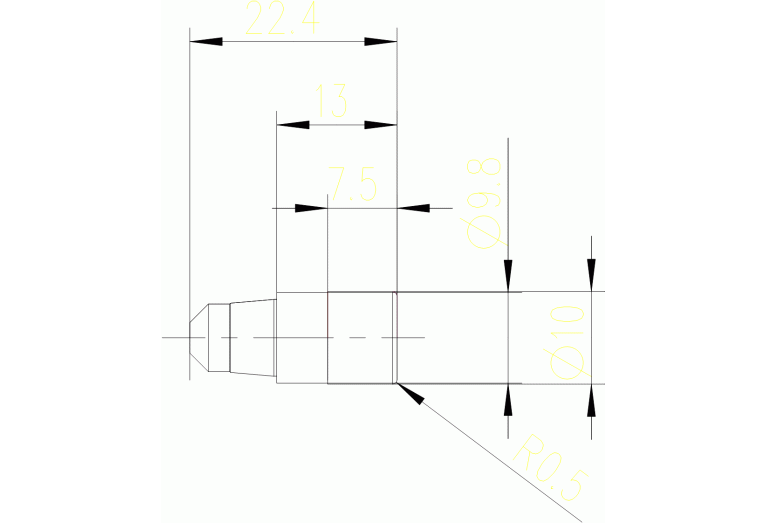

APMX Depth of cut maximum

7.5 mm

COATN Coating / Покрытие

DLC

COMPC Company code

CE - Ceratizit

DC Cutting diameter

10 mm

Delivery state valid from

10/1/2021

DIN

SAM00800105

DN Neck diameter

9.8 mm

F71 Number of corner designs

FamilyProducts

VHM TORUSFRÄSER

FHA Flute helix angle

43 Degree

FHH Flute helix hand

L - Hand of helix left

GAMP Rake angle axial

24 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAM Screw mounting MAPAL

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAM00800105

LPR Protruding length

13 mm

Name Identifying order number

5287010005

OAL Overall length

22.4 mm

RE Corner radius

0.5 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
