Главная Каталог продукции Toolunited 11 303-02 - Centre cutting end mill 4DU16005TRRA403 IN91D

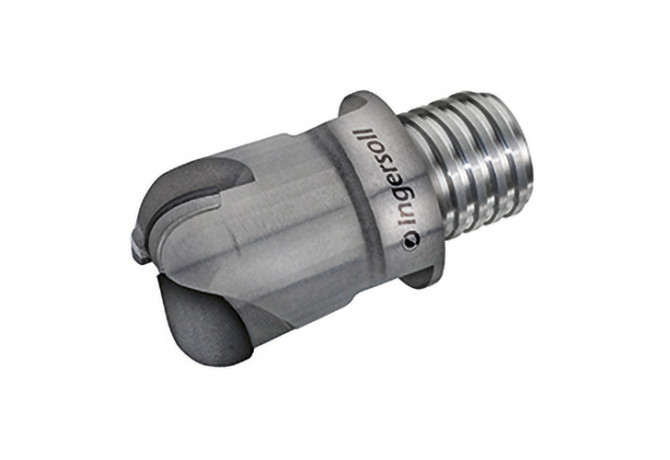

4DU16005TRRA403 IN91D

4DU16005TRRA403 IN91D 4DU16005TRRA403 IN91D 4DU16005TRRA403 IN91D

4DU16005TRRA403 IN91D

Ingersoll
Артикул: 5884881
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
5 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
PKD
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
SAI01000115
DN Neck diameter
15.5 mm
F71 Number of corner designs
1
FamilyProducts
Torus end mill
GRDMFG Grade manufacturers designation
IN91D
HAND Cutting direction
R - Right
ID Technical product number
5884881
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAI Screw mounting ISCAR
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAI01000115
Name Identifying order number
4DU16005TRRA403 IN91D
OAL Overall length
32.3 mm
RE Corner radius
4 mm
THSZMS Connection thread nominal size machine side
T10
Working process
No working processes available
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
