Главная Каталог продукции Toolunited 11 303-02 - Centre cutting end mill 47C12009T8RN0301 IN2005

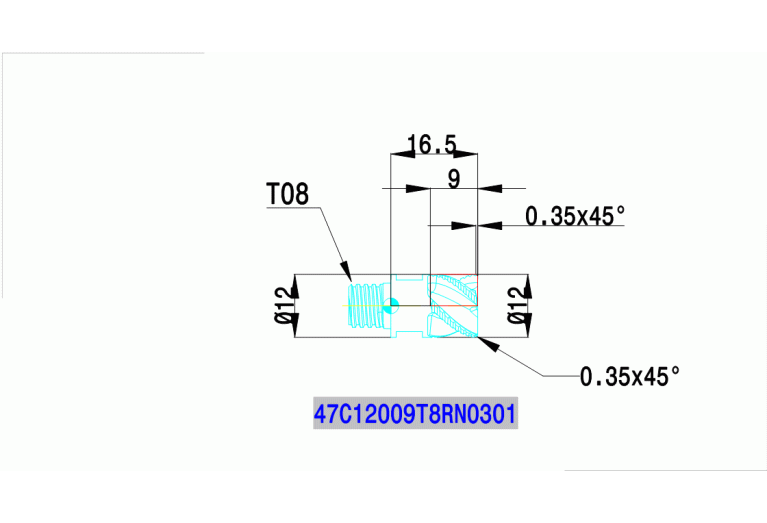

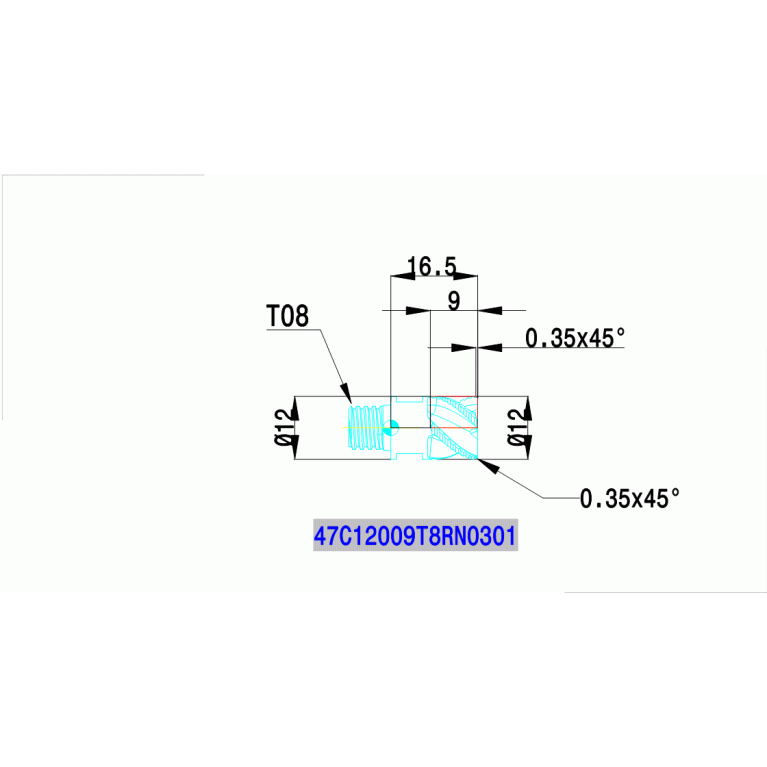

47C12009T8RN0301 IN2005

Артикул: 3759843

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

9 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.35 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI00800115

F71 Number of corner designs

FamilyProducts

Roughing end mill

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

3759843

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00800115

LPR Protruding length

16.5 mm

Name Identifying order number

47C12009T8RN0301 IN2005

OAL Overall length

24.5 mm

THSZMS Connection thread nominal size machine side

Working process

No working processes available

WT Weight of item

0.02 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
