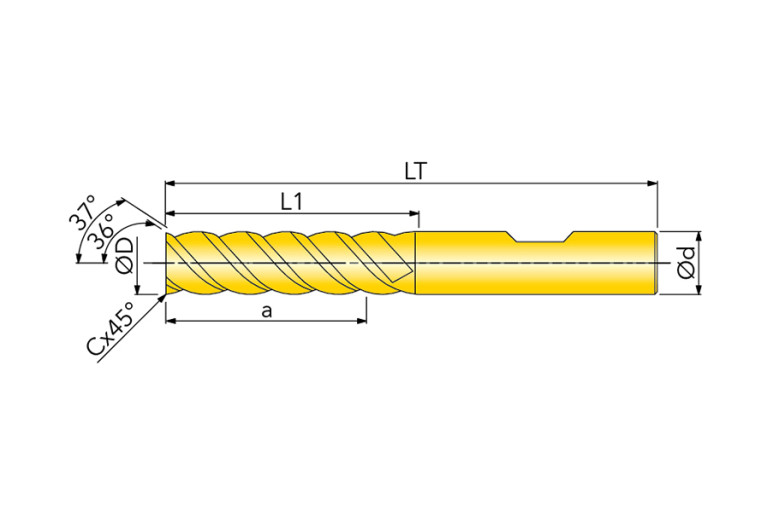

Главная Каталог продукции Toolunited 11 303-02 - Centre cutting end mill 47C08021W0RQ161 IN2205

47C08021W0RQ161 IN2205

47C08021W0RQ161 IN2205 47C08021W0RQ161 IN2205 47C08021W0RQ161 IN2205

47C08021W0RQ161 IN2205

Ingersoll
Артикул: 3701939
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
21 mm
BMC Body material code
H - Solid carbide
CHW Corner chamfer width
0.16 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
Multi TiAlN
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
8 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
ZYL00801005
F71 Number of corner designs
1
FamilyProducts
HPC Cutter Z=4 (PL) S
FHA Flute helix angle
36 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
IN2205
HAND Cutting direction
R - Right
ID Technical product number
3701939
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00801005
Name Identifying order number
47C08021W0RQ161 IN2205
OAL Overall length
64 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.035 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
