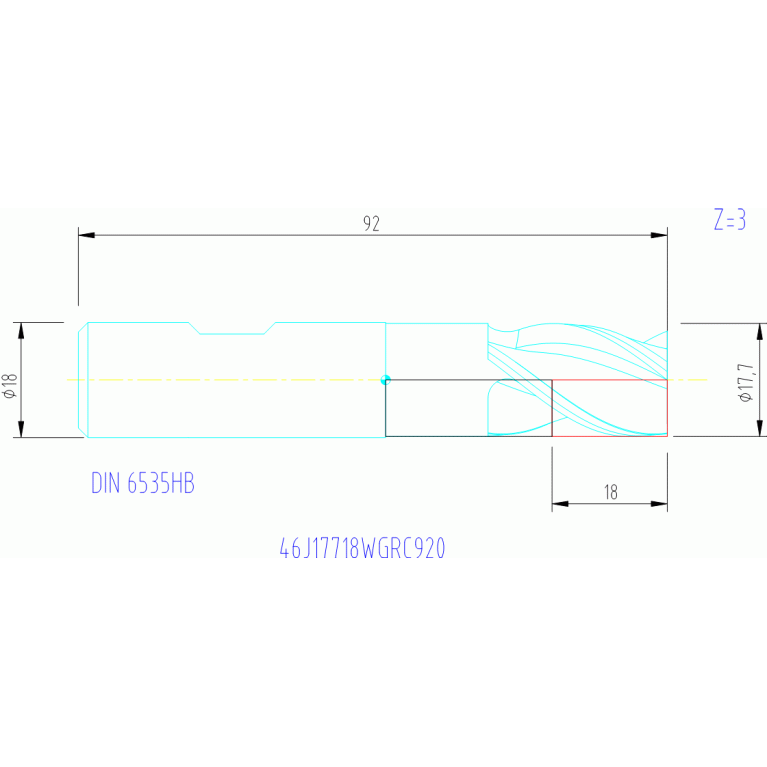

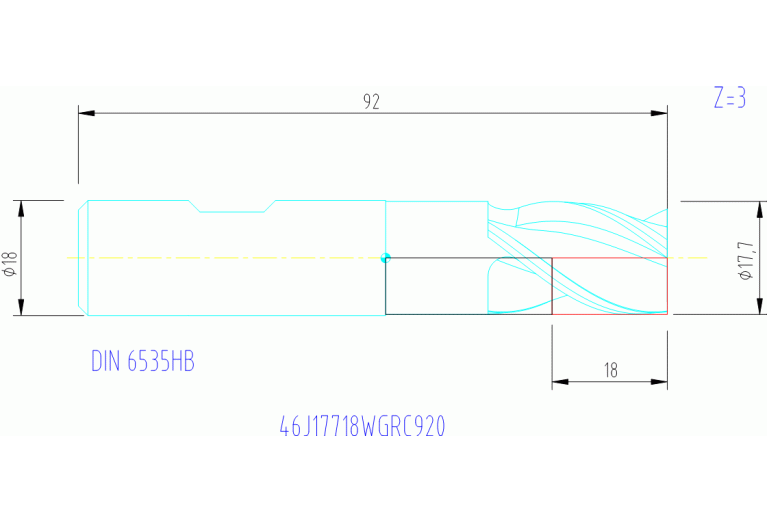

46J17718WGRC920 IN2005
46J17718WGRC920 IN2005
Артикул:
3040108
В наличии
Характеристики
APMX Depth of cut maximum
18 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAIN
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
17.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
ZYL01801005
F71 Number of corner designs
1
FamilyProducts
3 Flute Slot Drill (Undersize) - Short Length Z=3
FHA Flute helix angle
38 Degree
FHH Flute helix hand
R - Hand of helix right
GRD2ND Standard designation of the grade 2nd application
HC-K40
GRDMFG Grade manufacturers designation
IN2005
GRDPRIO Standard designation of the grade main application
HC-M35
HAND Cutting direction
R - Right
ID Technical product number
3040108
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01801005
LPR Protruding length
21 mm
Name Identifying order number
46J17718WGRC920 IN2005
OAL Overall length
92 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.29 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
