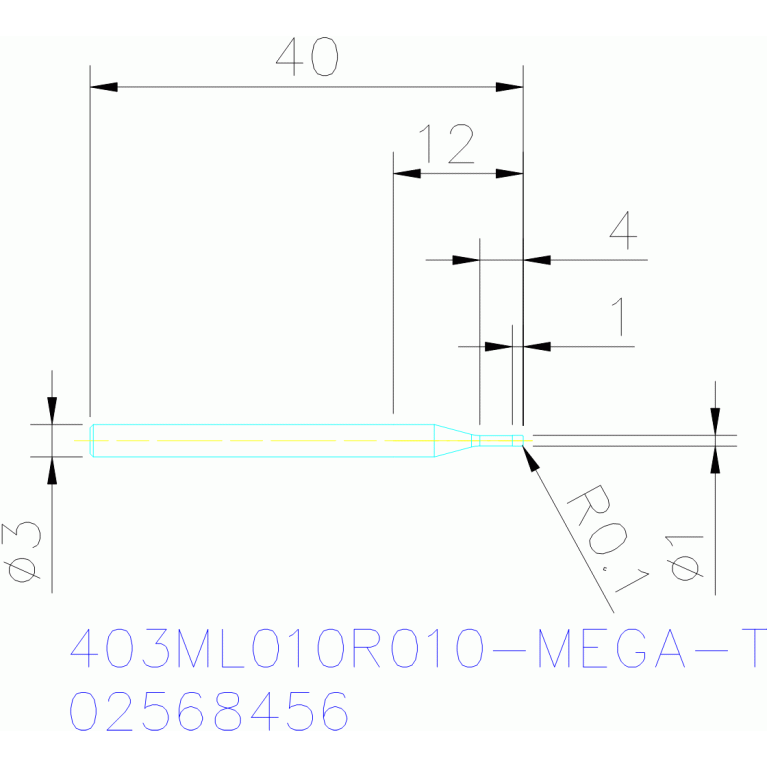

403ML010R010-MEGA-T
403ML010R010-MEGA-T
Артикул:
02568456
В наличии
Характеристики
APMX Depth of cut maximum
1 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
MEGA-T
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00300105
DN Neck diameter
0.95 mm
F71 Number of corner designs
1
FamilyProducts
403ML010R010-MEGA-T
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
30 Degree
GAMP Rake angle axial
18 Degree
HAND Cutting direction
R - Right
ID Technical product number
02568456
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LN Neck length
4 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0030
LOC-03 DCONMS Diameter
3 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00300105
LS Shank length
28 mm
Name Identifying order number
403ML010R010-MEGA-T
OAL Overall length
40 mm
RMPX Ramping angle maximum
0 Degree
Working process
No working processes available
WT Weight of item
0.004 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
