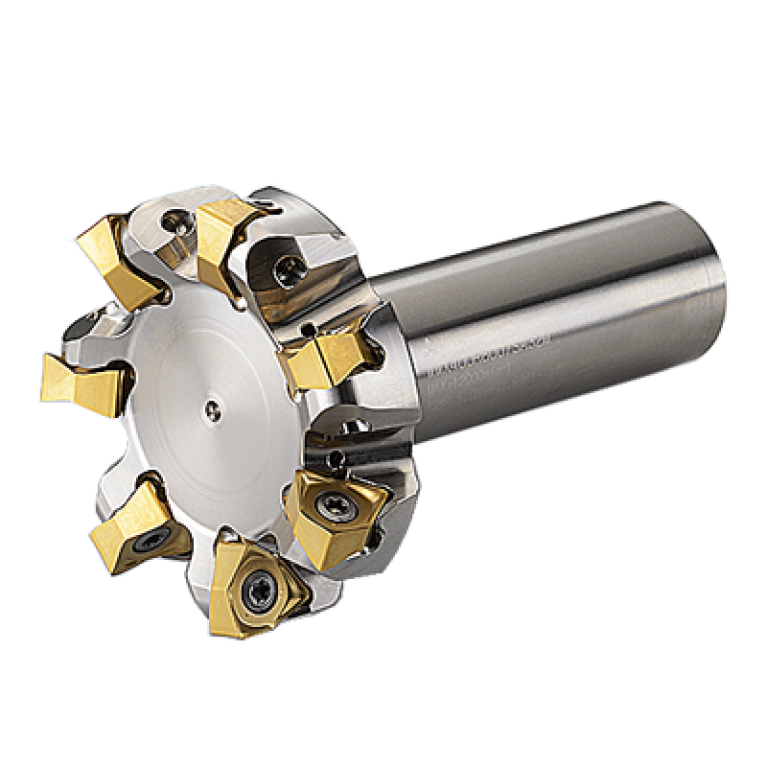

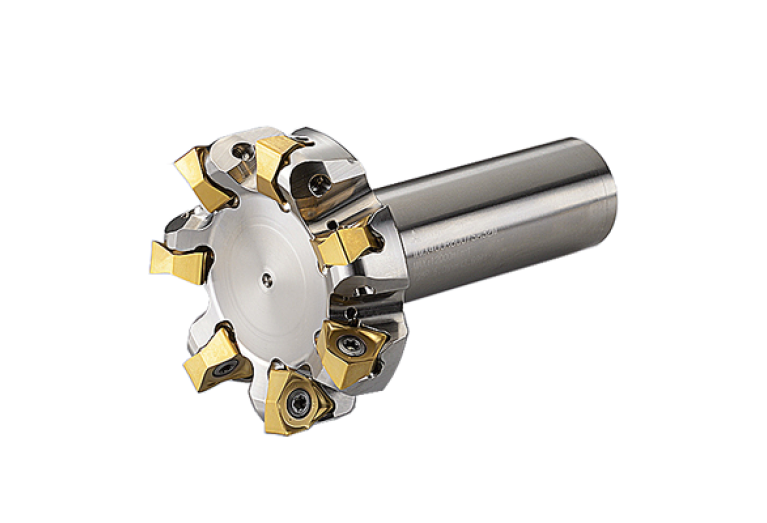

Главная Каталог продукции Toolunited 11 307-01 - Non-centre cutting single row end mill WWX400UR3204FA20M

WWX400UR3204FA20M

WWX400UR3204FA20M WWX400UR3204FA20M WWX400UR3204FA20M WWX400UR3204FA20M

WWX400UR3204FA20M

Mitsubishi Materials
Артикул: 10614617
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
APMX Depth of cut maximum
8.2042 mm
B1A Cutting edge length Pos. A
8.876 mm
B3A Inscribed circle diameter Pos. A
14 mm
BD Body diameter
49.1998 mm
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
7 mm
CCONMS Connection count machine side
2
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.4 mm

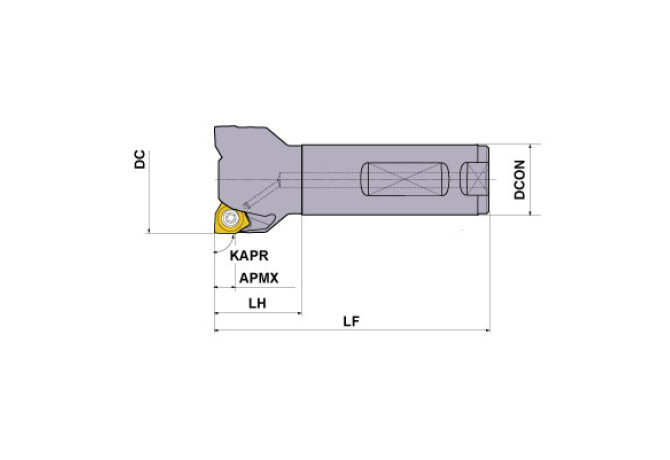

DC Cutting diameter
50.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL12501035
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
10614617
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
ZYL10S1250$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 ISO
ZYL10S1250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12501035
LPR Protruding length
38.1 mm
LS Shank length
82.55 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
WWX400UR3204FA20M

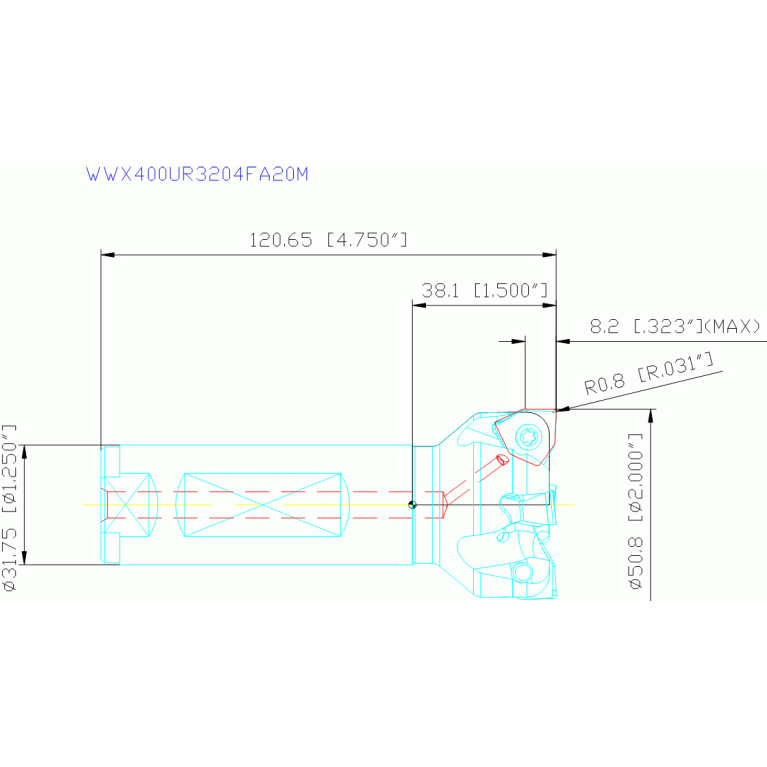

OAL Overall length
120.65 mm
RMPX Ramping angle maximum
0.4 Degree
Working process
No working processes available
WT Weight of item
1.7 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
