Главная Каталог продукции Toolunited 11 307-01 - Non-centre cutting single row end mill VPX200UR1603SA12L

VPX200UR1603SA12L

VPX200UR1603SA12L VPX200UR1603SA12L VPX200UR1603SA12L

VPX200UR1603SA12L

Mitsubishi Materials
Артикул: 10597576
В наличии
В корзину
Описание
Характеристики

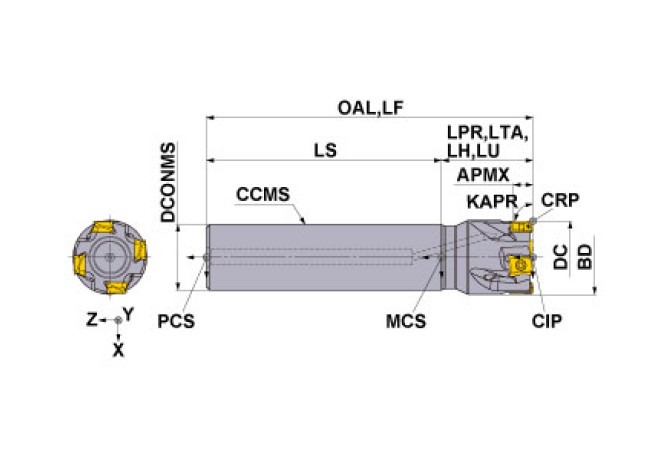

APMX Depth of cut maximum
8.001 mm
B2A Insert width Pos. A
4.3 mm
BD Body diameter
23.7998 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
6.7 mm
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.2 mm
D6A Wiper edge length Pos. A
1.7 mm
DC Cutting diameter
25.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL07500135
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
10597576
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
ZYL01R7500$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
215.9 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03 ISO
ZYL01R7500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07500135
LPR Protruding length
38.1 mm
LS Shank length
177.8 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
VPX200UR1603SA12L
OAL Overall length
215.9 mm
RMPX Ramping angle maximum
0.95 Degree
Working process
No working processes available
WT Weight of item
1 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
