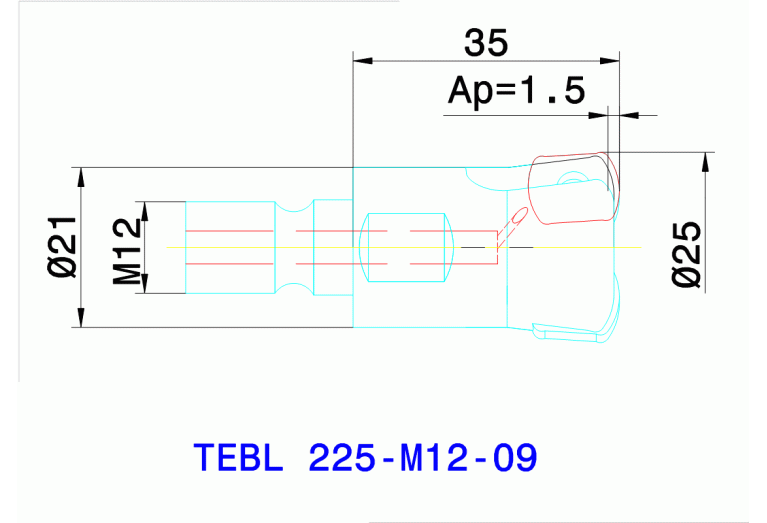

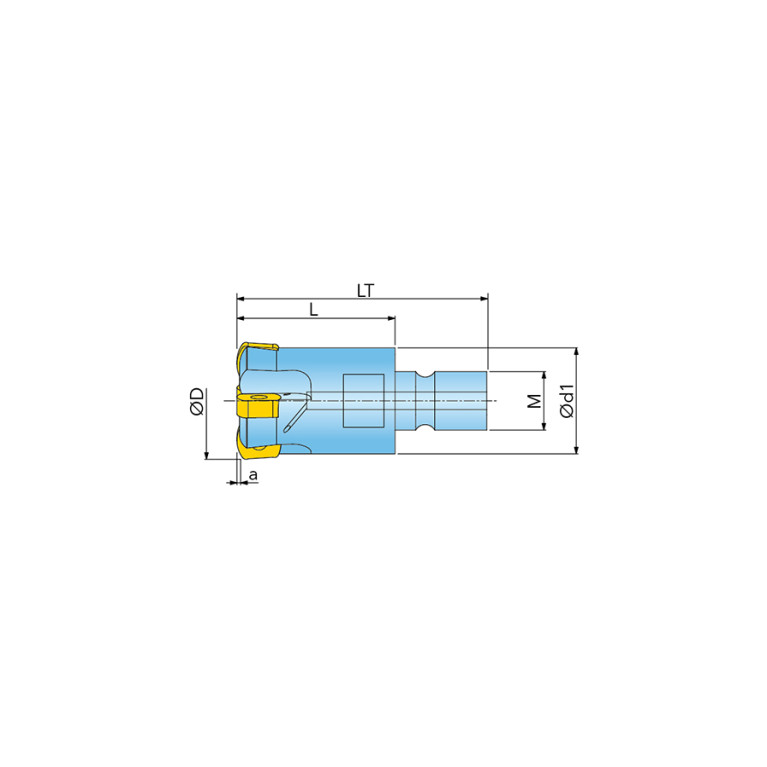

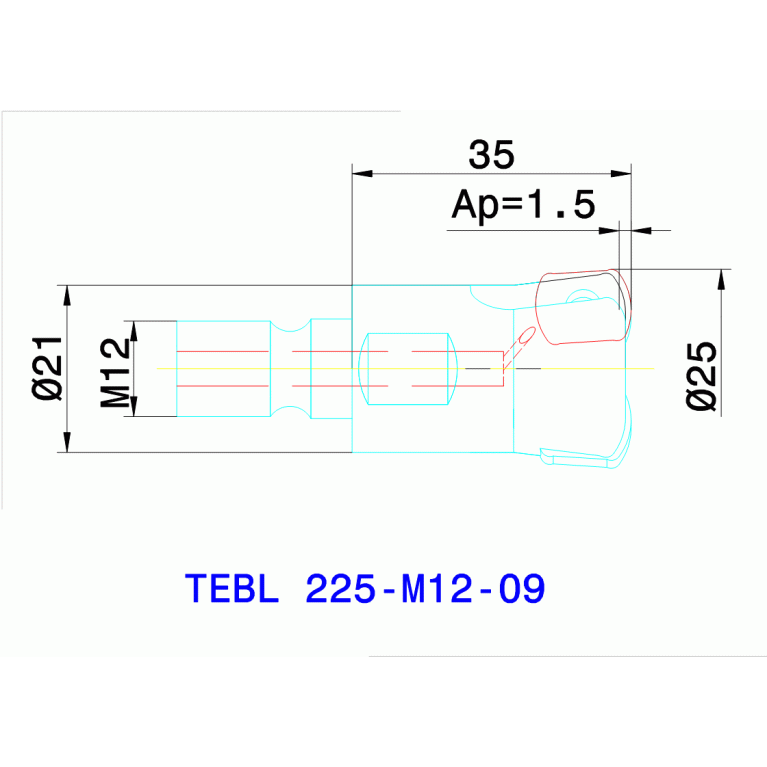

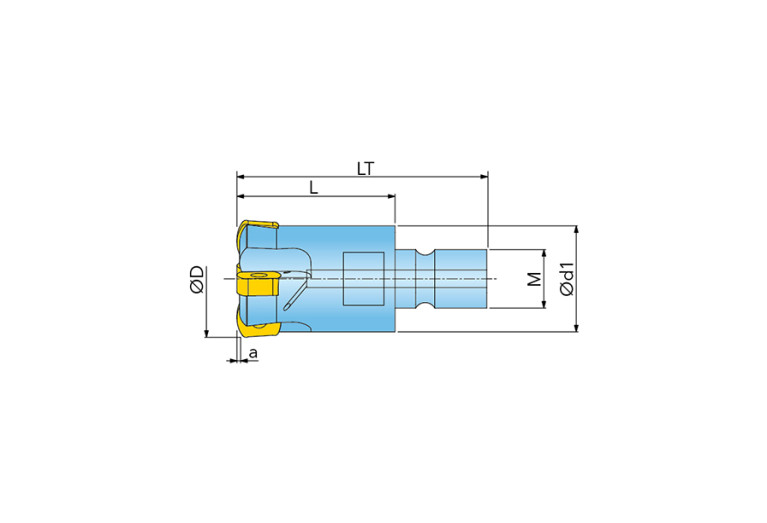

Главная Каталог продукции Toolunited 11 307-01 - Non-centre cutting single row end mill 1TG1G025035X7R00

1TG1G025035X7R00

1TG1G025035X7R00 1TG1G025035X7R00 1TG1G025035X7R00 1TG1G025035X7R00

1TG1G025035X7R00

Ingersoll
Артикул: 3112890
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
2
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
MOD01200115
DN Neck diameter
21 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
High Feed Cutter 1TG1G...X
HAND Cutting direction
R - Right
ID Technical product number
3112890
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MOD
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MOD01200115
Name Identifying order number
1TG1G025035X7R00
OAL Overall length
57 mm
RMPX Ramping angle maximum
3 Degree
Working process
No working processes available
WT Weight of item
0.22 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
