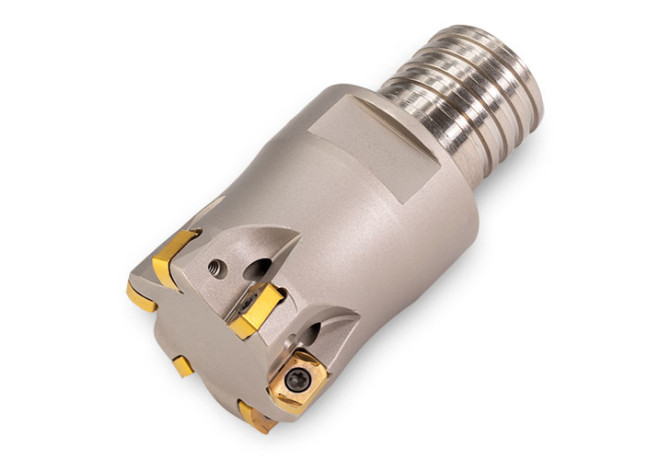

Главная Каталог продукции Toolunited 11 307-01 - Non-centre cutting single row end mill 1TG1B020022TSR00

1TG1B020022TSR00

1TG1B020022TSR00 1TG1B020022TSR00 1TG1B020022TSR00 1TG1B020022TSR00

1TG1B020022TSR00

Ingersoll
Артикул: 3703757
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
0.5 mm
B2A Insert width Pos. A
4.2 mm
B3A Inscribed circle diameter Pos. A
4.2 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
2.52 mm
CCONMS Connection count machine side
1
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.5 mm
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
SAI01000115
DN Neck diameter
18.3 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
High Feed Cutter 1TG1B...
HAND Cutting direction
R - Right
ID Technical product number
3703757
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAI Screw mounting ISCAR
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAI01000115
LPR Protruding length
22 mm
Name Identifying order number
1TG1B020022TSR00
OAL Overall length
35.8 mm
RMPX Ramping angle maximum
1 Degree
Working process
FZI - Circular milling
WT Weight of item
0.05 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
