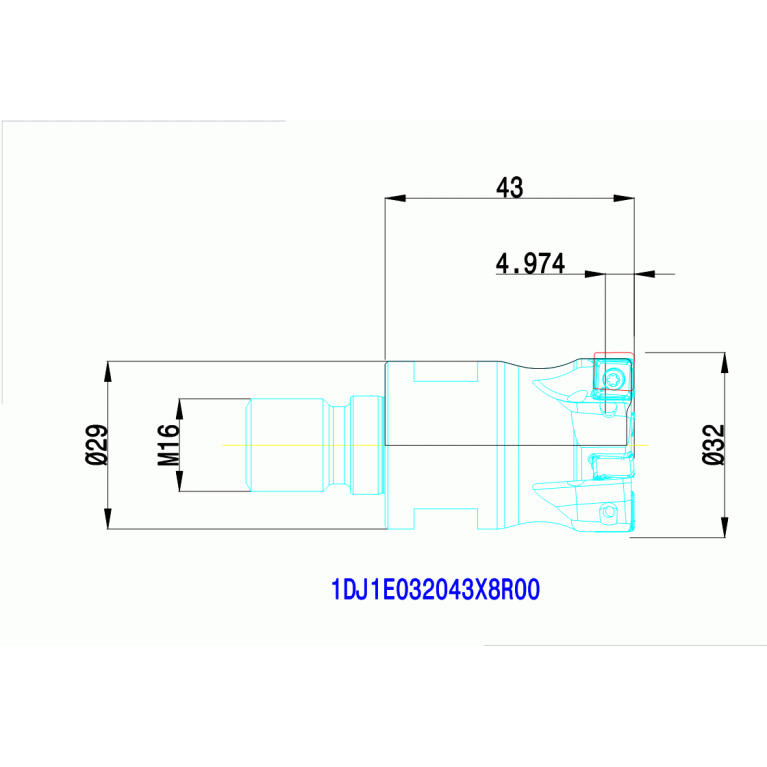

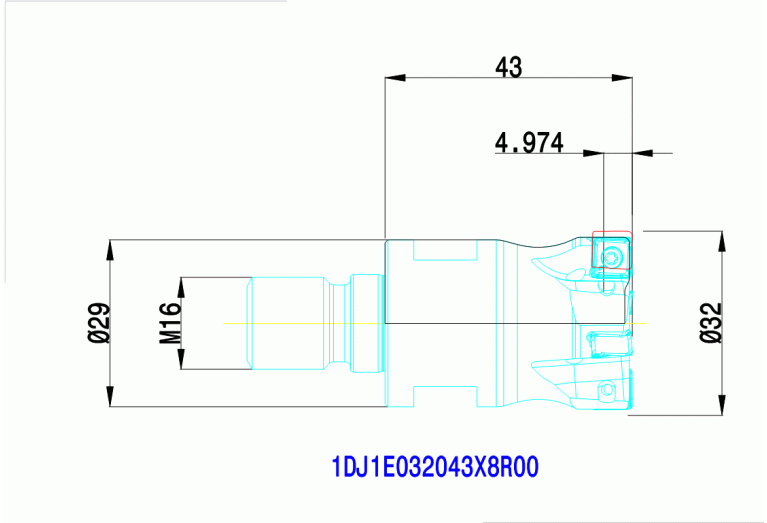

Главная Каталог продукции Toolunited 11 307-01 - Non-centre cutting single row end mill 1DJ1E032043X8R00

1DJ1E032043X8R00

1DJ1E032043X8R00 1DJ1E032043X8R00 1DJ1E032043X8R00 1DJ1E032043X8R00

1DJ1E032043X8R00

Ingersoll
Артикул: 3098119
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
4.42 mm
B2A Insert width Pos. A
7 mm
B3A Inscribed circle diameter Pos. A
7 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
4.2 mm
CCONMS Connection count machine side
2
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
SAD01600115
DN Neck diameter
29 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
End Mill 1DJ1E...X
HAND Cutting direction
R - Right
ID Technical product number
3098119
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01600115
LPR Protruding length
43 mm
Name Identifying order number
1DJ1E032043X8R00
OAL Overall length
67 mm
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling
WT Weight of item
0.22 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
