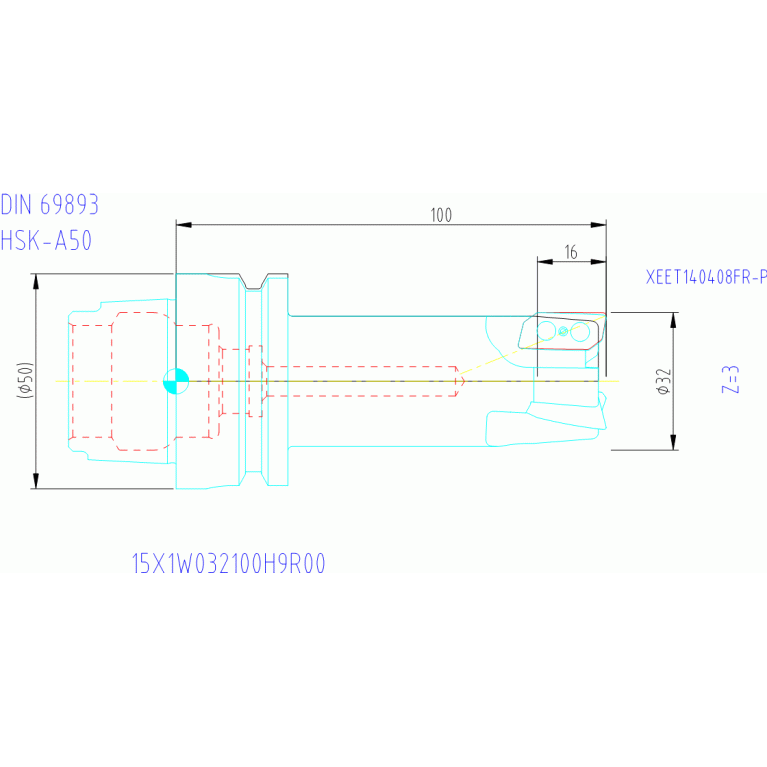

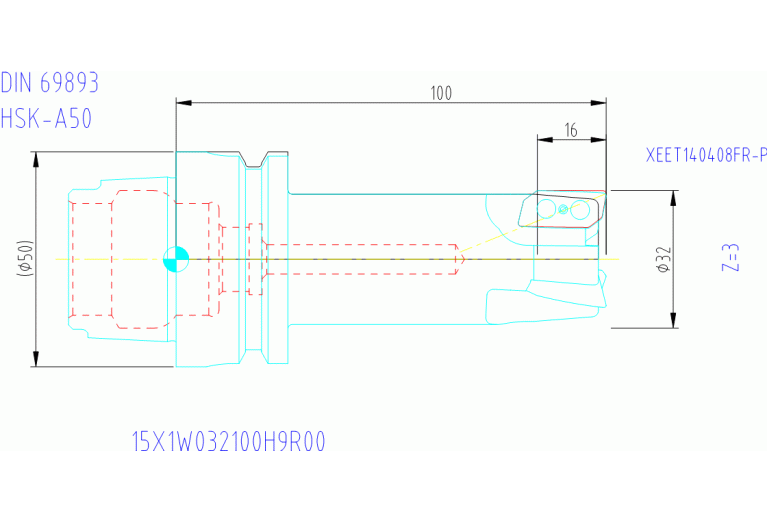

15X1W032100H9R00
15X1W032100H9R00
Артикул:
3025038
В наличии
Характеристики
CCONMS Connection count machine side
1
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
HSK05000195
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts

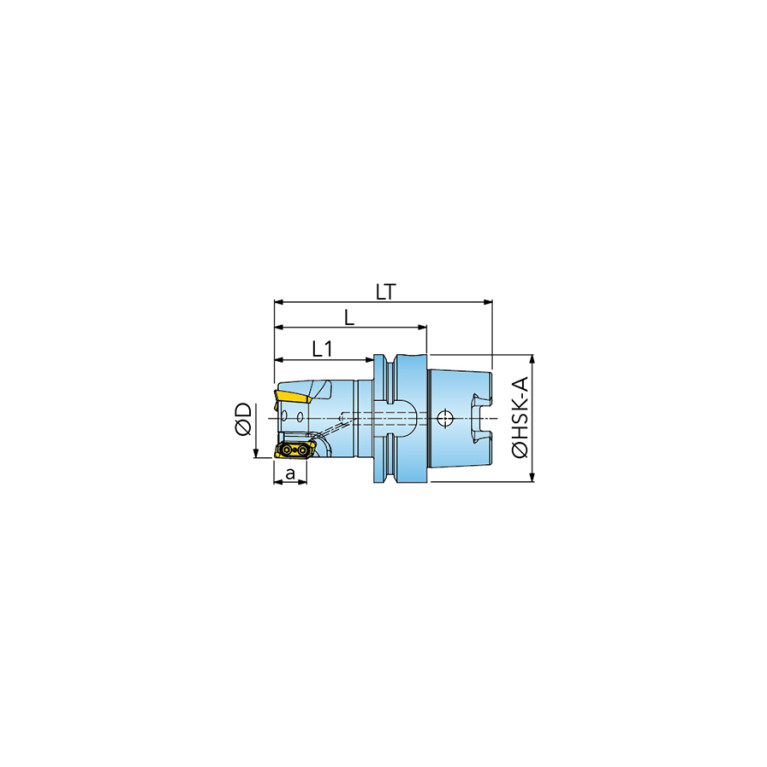

End Mill 15X1W...H9
HAND Cutting direction
R - Right
ID Technical product number
3025038
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK05000195
Name Identifying order number
15X1W032100H9R00
OAL Overall length
125 mm
RMPX Ramping angle maximum
12.2 Degree
Working process
No working processes available
WT Weight of item
0.72 kg
ZEFP Peripheral effective cutting edge count
3
