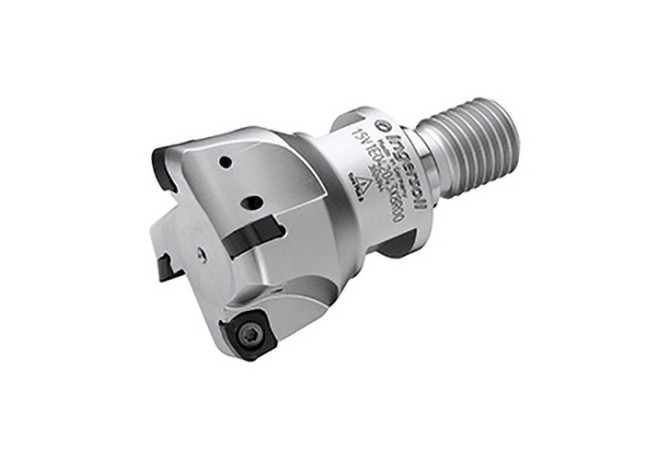

Главная Каталог продукции Toolunited 11 307-01 - Non-centre cutting single row end mill 15V1E042043X8R10

15V1E042043X8R10

15V1E042043X8R10 15V1E042043X8R10 15V1E042043X8R10

15V1E042043X8R10

Ingersoll
Артикул: 3072763
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
99
CCONMS Connection count machine side
2
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric

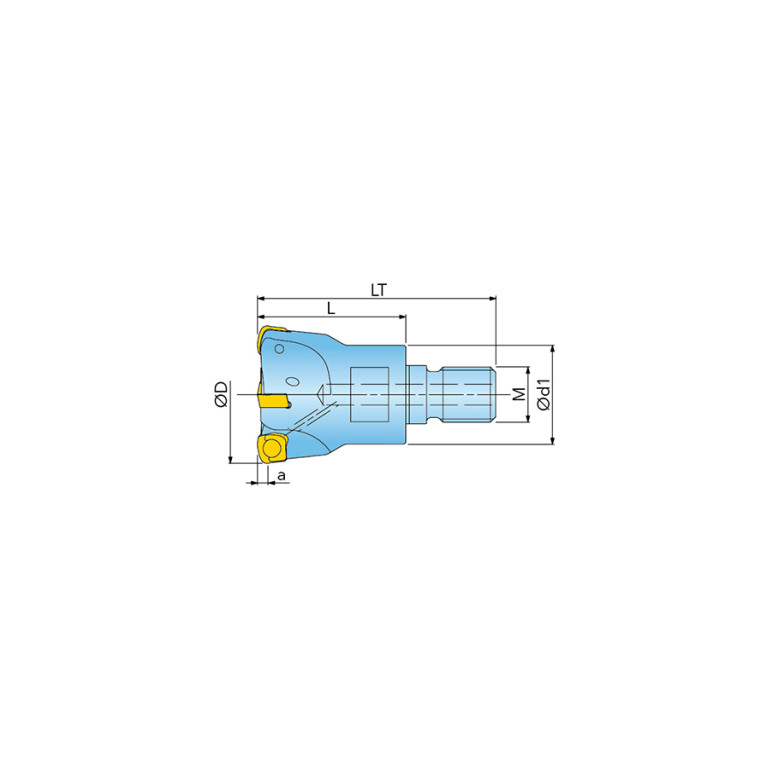

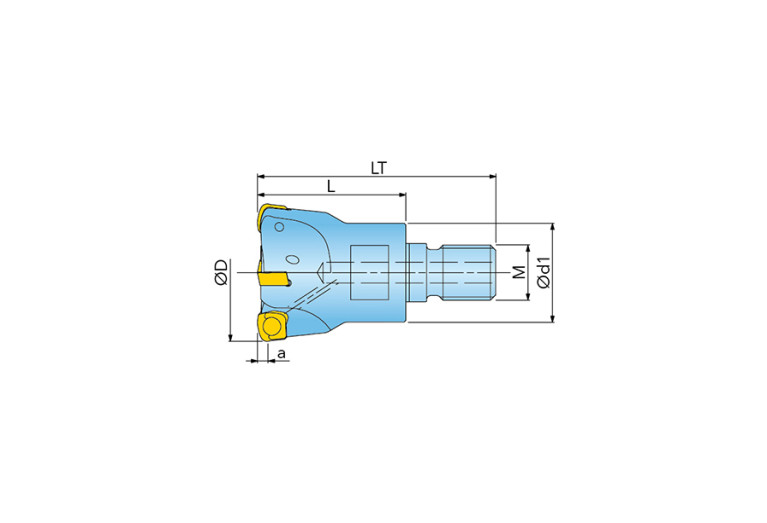

DC Cutting diameter
42 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
MOD01600115
DN Neck diameter
29 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
Copy End Mill 15V1E...X
HAND Cutting direction
R - Right
ID Technical product number
3072763
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MOD
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MOD01600115
LPR Protruding length
43 mm
Name Identifying order number
15V1E042043X8R10
OAL Overall length
67 mm
RMPX Ramping angle maximum
1.7 Degree
Working process
No working processes available
WT Weight of item
0.25 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
