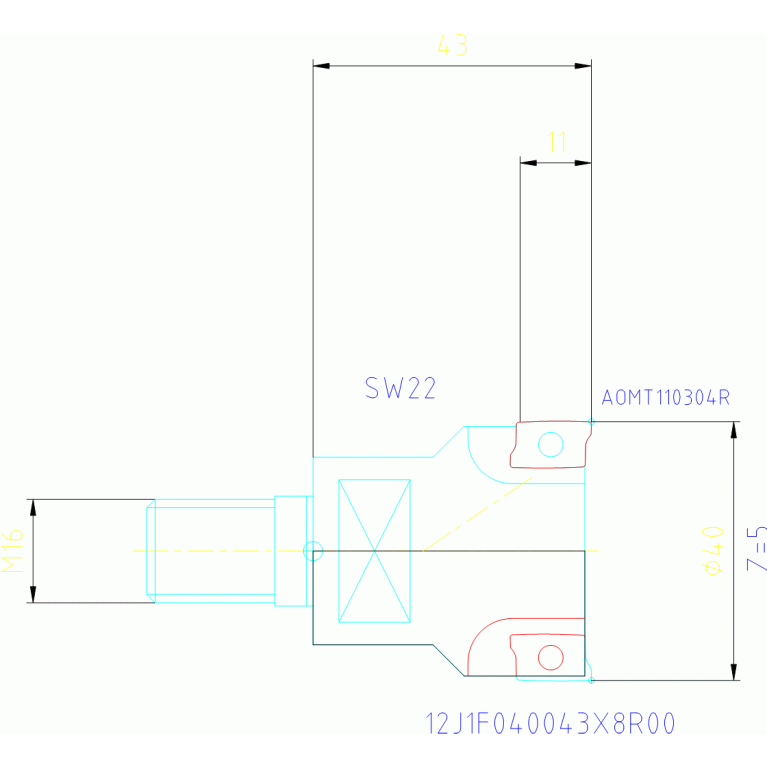

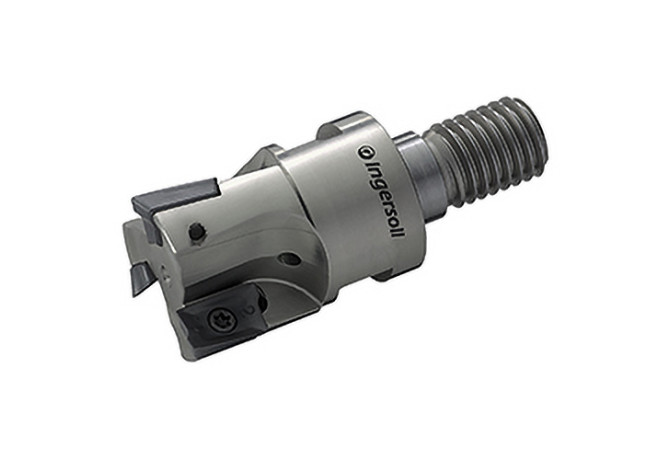

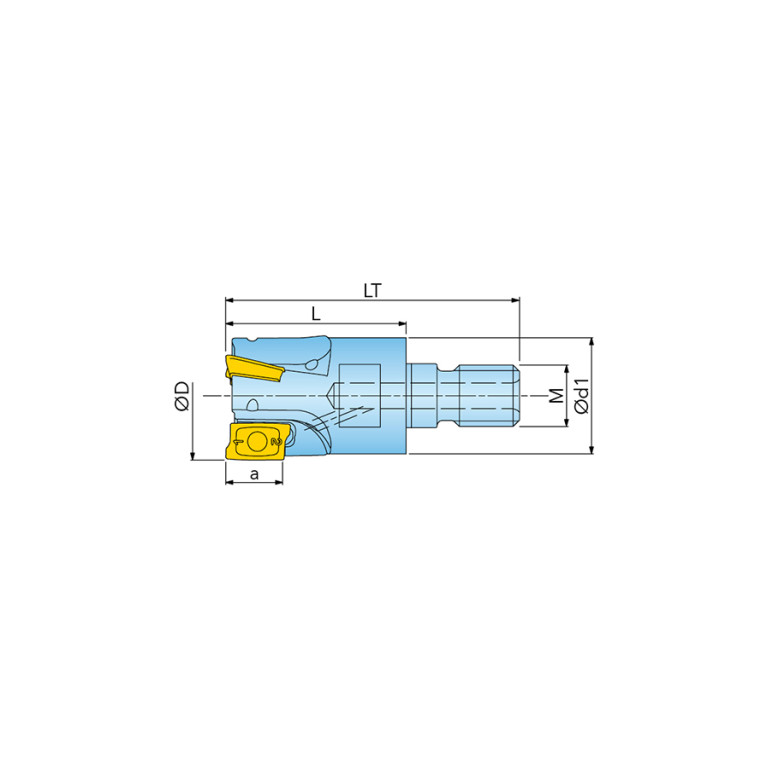

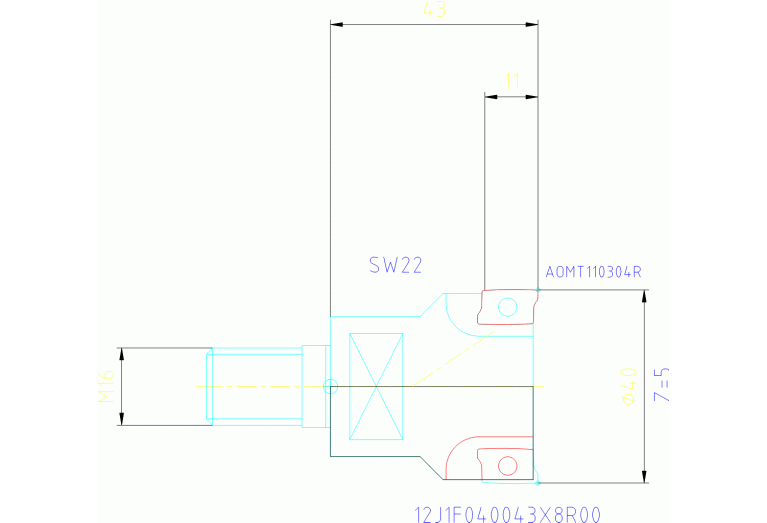

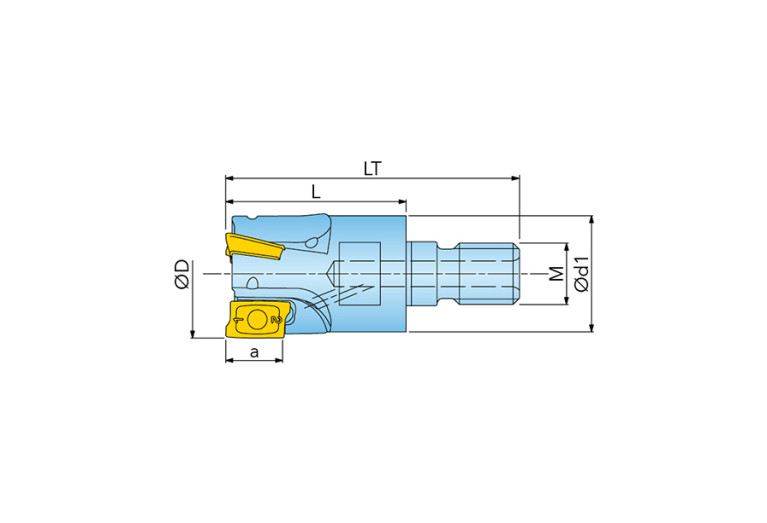

Главная Каталог продукции Toolunited 11 307-01 - Non-centre cutting single row end mill 12J1F040043X8R00

12J1F040043X8R00

12J1F040043X8R00 12J1F040043X8R00 12J1F040043X8R00 12J1F040043X8R00

12J1F040043X8R00

Ingersoll
Артикул: 3070395
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
85 Degree
A2A Clearance angle major Pos. A
11 Degree
APMX Depth of cut maximum
11 mm
B1A Cutting edge length Pos. A
10.8 mm
B2A Insert width Pos. A
7.2 mm
B3A Inscribed circle diameter Pos. A
7.2 mm
BLDA Tool style code Position A
5
C1A Insert thickness Pos. A
3.9 mm
CCONMS Connection count machine side
2
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
IL-K-974
DN Neck diameter
29 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
End Mill 12J1F...X
HAND Cutting direction
R - Right
ID Technical product number
3070395
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LF Functional length
67 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IL-K-974
LPR Protruding length
43 mm
Name Identifying order number
12J1F040043X8R00
OAL Overall length
67 mm
RMPX Ramping angle maximum
2.8 Degree
Working process
No working processes available
WT Weight of item
0.25 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
