Главная Каталог продукции Toolunited 11 307-01 - Non-centre cutting single row end mill 12J1F020035X6R00

12J1F020035X6R00

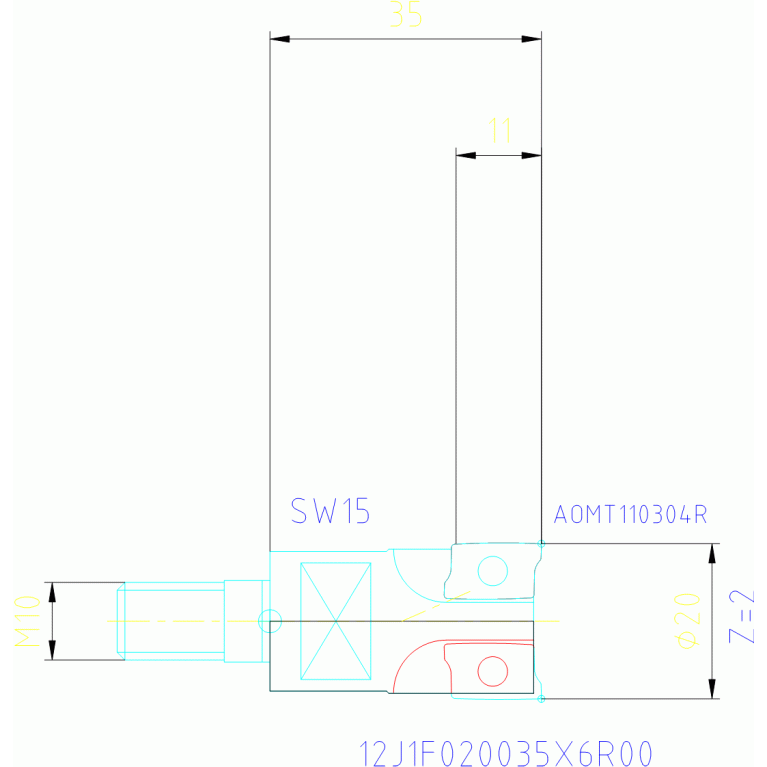

12J1F020035X6R00 12J1F020035X6R00 12J1F020035X6R00 12J1F020035X6R00

12J1F020035X6R00

Ingersoll
Артикул: 3080441
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
85 Degree
A2A Clearance angle major Pos. A
11 Degree
APMX Depth of cut maximum
11 mm
B1A Cutting edge length Pos. A
10.8 mm
B2A Insert width Pos. A
7.2 mm
B3A Inscribed circle diameter Pos. A
7.2 mm
BLDA Tool style code Position A
5
C1A Insert thickness Pos. A
3.9 mm
CCONMS Connection count machine side
2
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
IL-K-973
DN Neck diameter
18 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
End Mill 12J1F...X
HAND Cutting direction
R - Right
ID Technical product number
3080441
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LF Functional length
54.8 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IL-K-973
LPR Protruding length
35 mm
Name Identifying order number
12J1F020035X6R00
OAL Overall length
54.8 mm
RMPX Ramping angle maximum
7 Degree
Working process
No working processes available
WT Weight of item
0.06 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
