Главная Каталог продукции Toolunited 11 302-01 - Twist Drill 1170109100

1170109100

Артикул: 1170109100

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

TIALN

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

9.1 mm

Delivery state valid from

10/1/2022

DIN

ZYL01000115

FamilyProducts

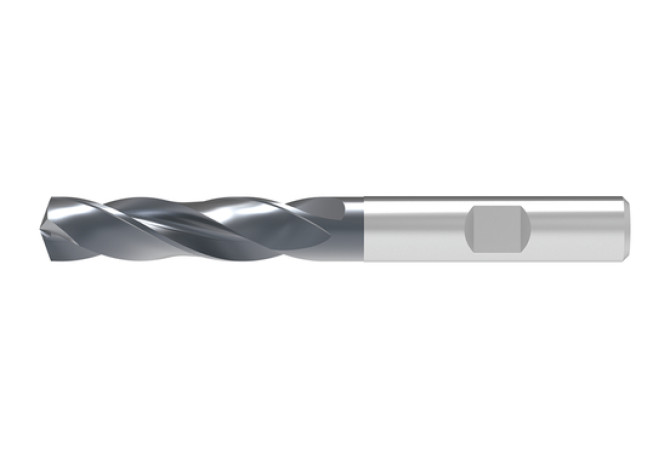

SOLID CARBIDE TWIST DRILL UNI.9,10.R.3D.IK.DIN6535.HB TIALN

GRDMFG Grade manufacturers designation

TIALN

GRDPRIO Standard designation of the grade main application

HC-K10

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

35 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000115

LPR Protruding length

49 mm

LS Shank length

40 mm

LU Usable length

33.3 mm

Name Identifying order number

1170109100

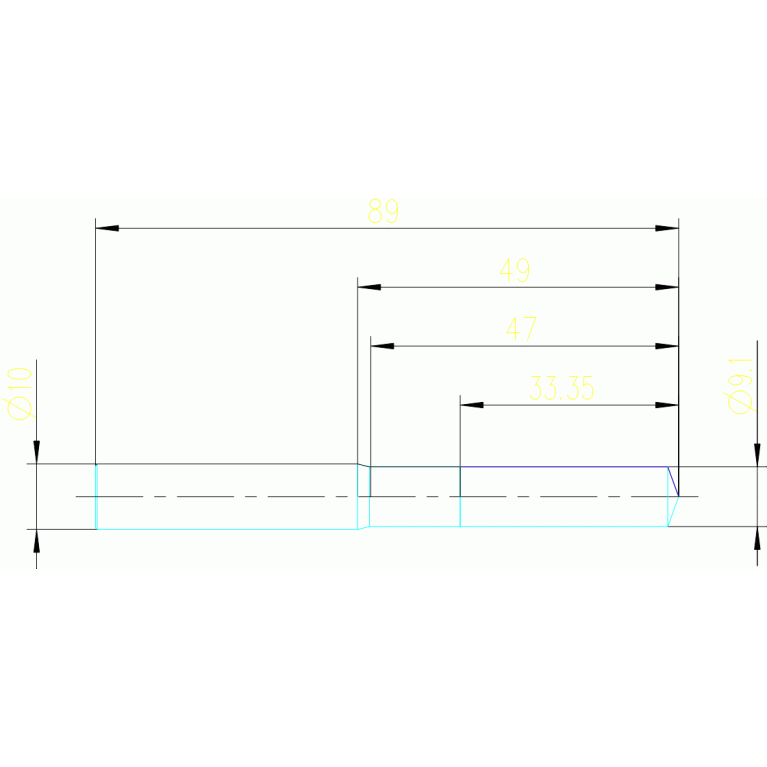

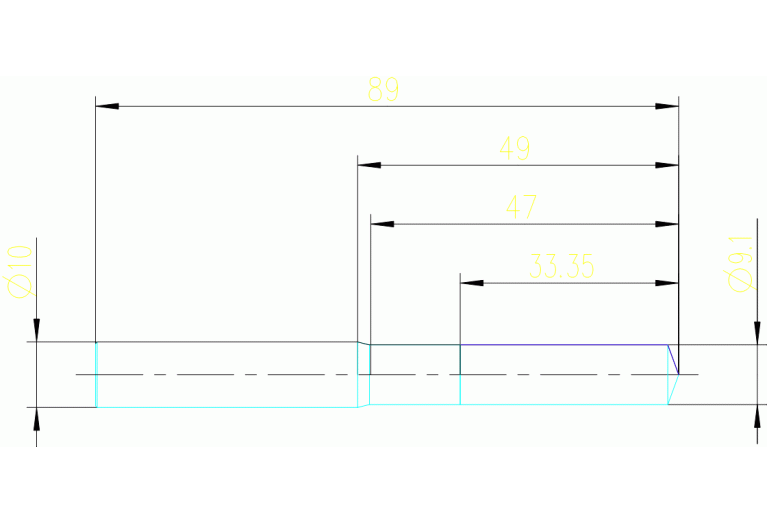

OAL Overall length

89 mm

SIG Point angle 1st step

140 Degree

Working process

No working processes available
