11609020

Артикул: 11609020

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

COATN Coating / Покрытие

TiAlN

COMPC Company code

CE - Ceratizit

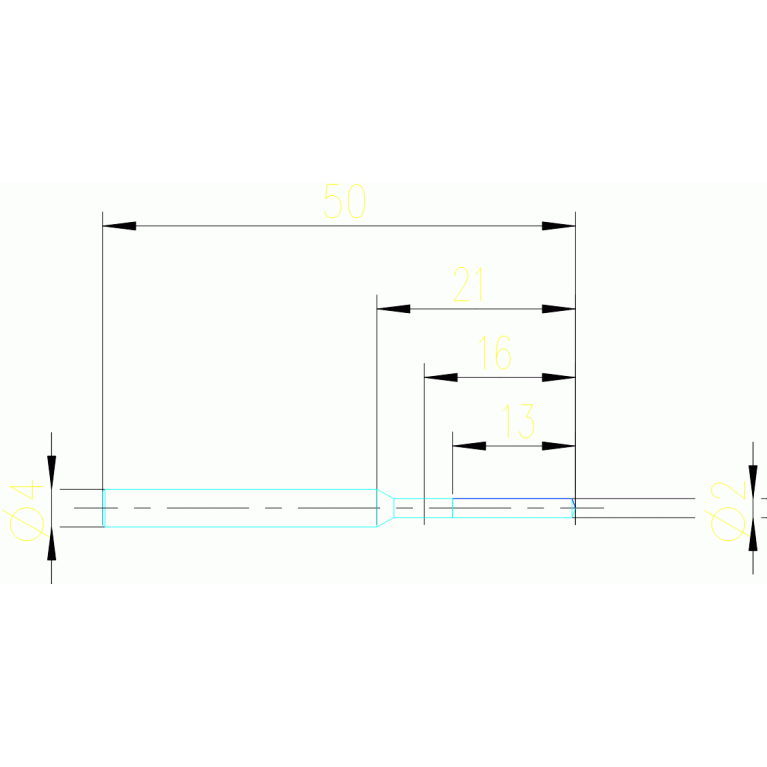

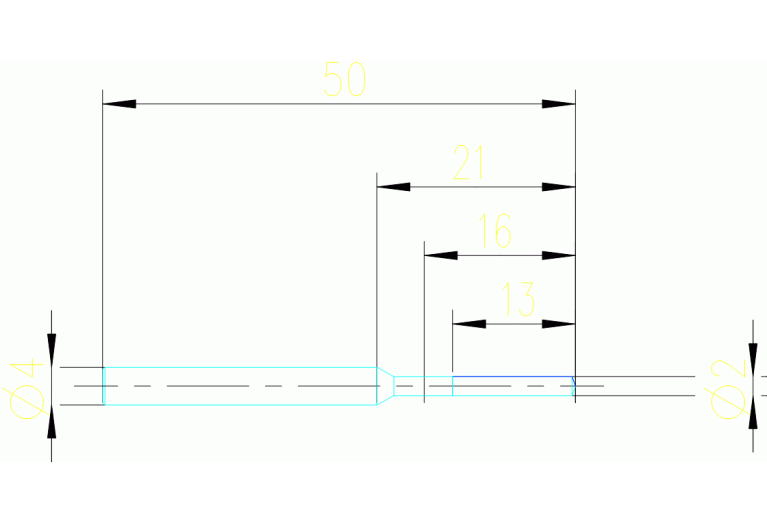

DC Cutting diameter minimum

2 mm

Delivery state valid from

10/1/2021

DIN

ZYL00400115

FamilyProducts

VHM SPIRALBOHRER

FHH Flute helix hand

L - Hand of helix left

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400115

LPR Protruding length

21 mm

LS Shank length

29 mm

LU Usable length

13 mm

Name Identifying order number

11609020

NOF Flute count

OAL Overall length

50 mm

SIG Point angle 1st step

140 Degree

Working process

No working processes available
