11603054

Артикул: 11603054

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

COATN Coating / Покрытие

TiAlN

COMPC Company code

CE - Ceratizit

DC Cutting diameter minimum

5.4 mm

Delivery state valid from

10/1/2021

DIN

ZYL00600115

FamilyProducts

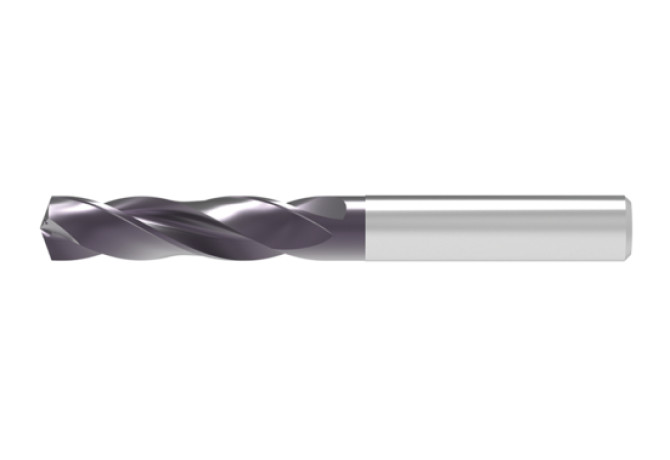

VHM SPIRALBOHRER

FHH Flute helix hand

L - Hand of helix left

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

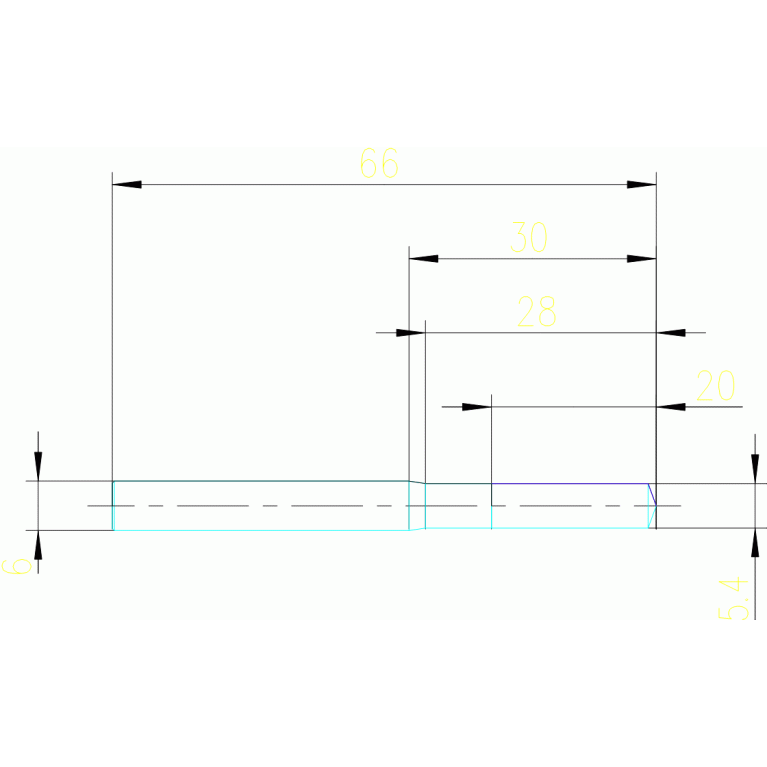

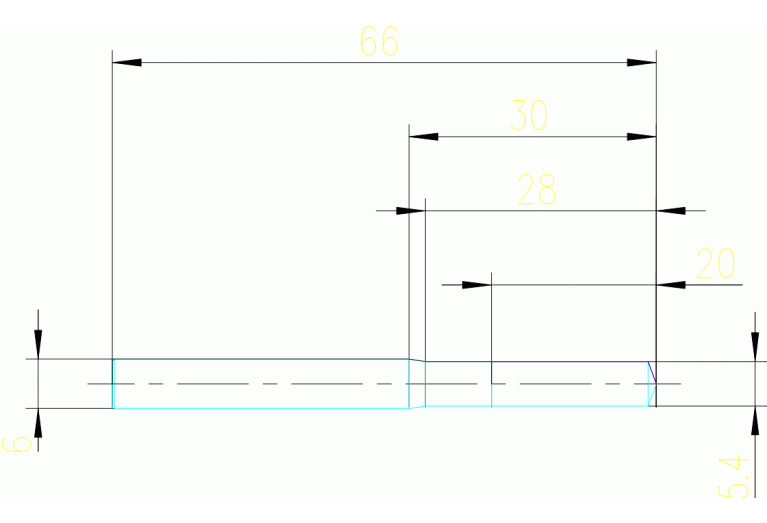

LCF Length chip flute

28 mm

LPR Protruding length

30 mm

LS Shank length

36 mm

LU Usable length

20 mm

Name Identifying order number

11603054

NOF Flute count

OAL Overall length

66 mm

SIG Point angle 1st step

140 Degree
