Главная Каталог продукции Toolunited 11 302-01 - Twist Drill 1073605100

1073605100

Артикул: 1073605100

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

DPX74S

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

5.1 mm

Delivery state valid from

10/1/2022

DIN

ZYL00600115

FamilyProducts

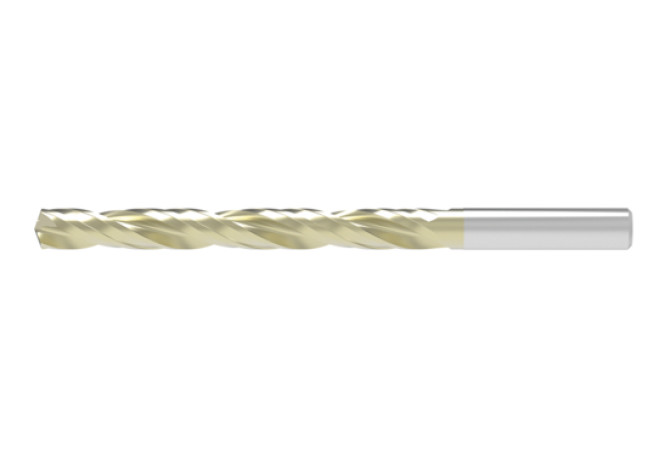

SOLID CARBIDE TWIST DRILL WTX-QUATTRO.5,10.R.8D.IK.HA DPX74S

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600115

LPR Protruding length

56 mm

LS Shank length

36 mm

LU Usable length

48 mm

Name Identifying order number

1073605100

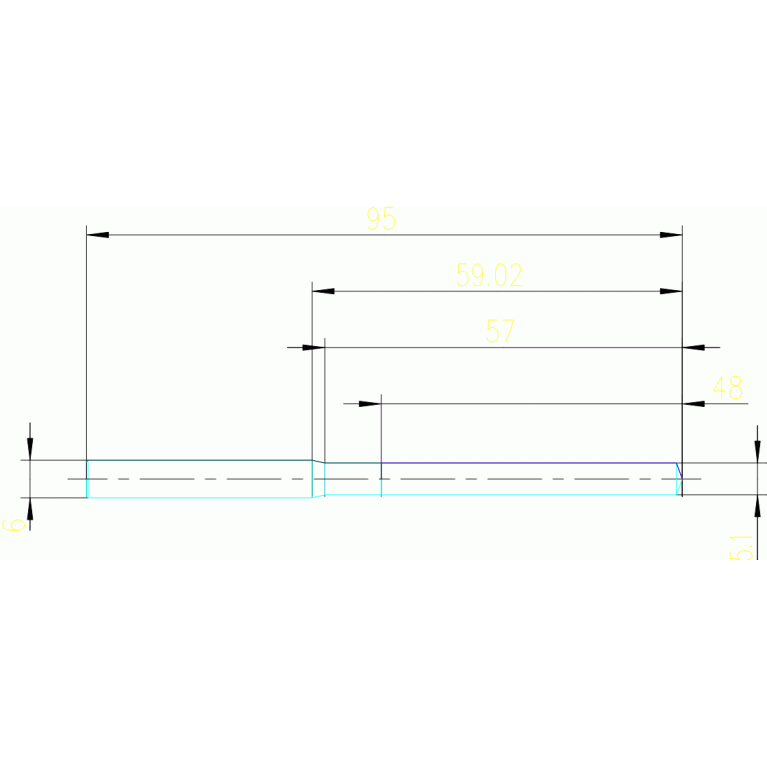

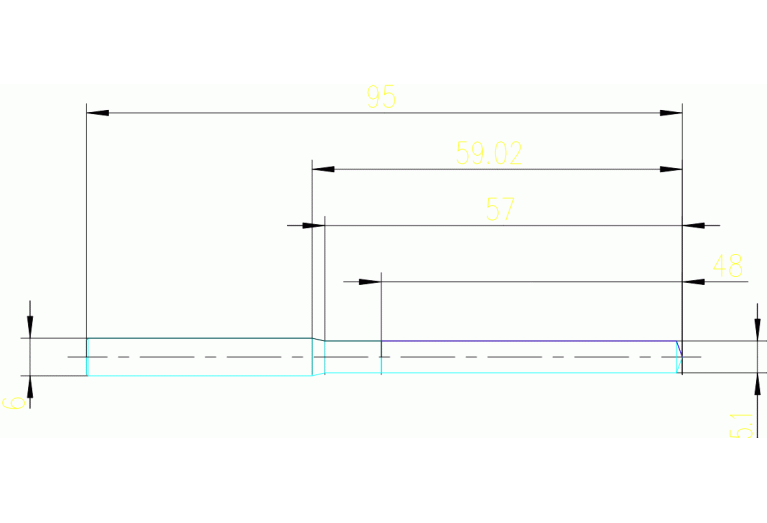

OAL Overall length

95 mm

PL Point length

0.928 mm

SIG Point angle 1st step

140 Degree

Working process

No working processes available
